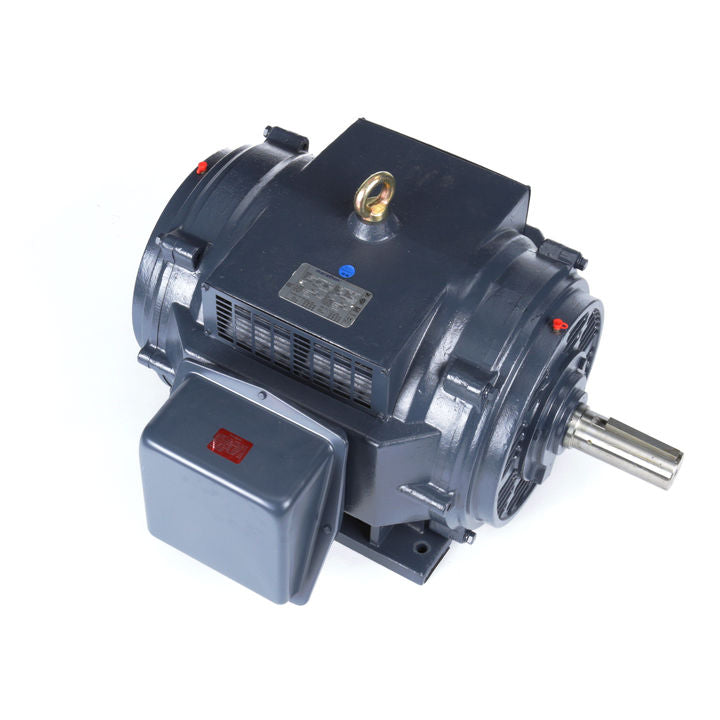

GT0042, 364TSTDCB6001, 75 Hp, 3600 Rpm, 364TS FR, 208-230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

GT0042, 364TSTDCB6001, 75 Hp, 3600 Rpm, 364TS FR, 208-230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

Engineering Data

Nameplate Specifications

Output HP 75 Hp
Output KW  56 kW
Frequency  60 Hz
Voltage  230/460 V
Current  164/82 A
Speed  3570 rpm
Service Factor  1.15
Phases  3
Efficiency  93.6 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  364TS
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6312
Opp Drive End Bearing Size  6312
UL  Recognized
CSA  Y
CE  Y
IP Code  12

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method PWS & Y D RUN OR INV
Poles 2
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  TS
Overall Length  29.57 in
Shaft Diameter  1.88 in
Shaft Extension  3.75 in
Assembly/Box Mounting  F1/F2 CAPABALE
