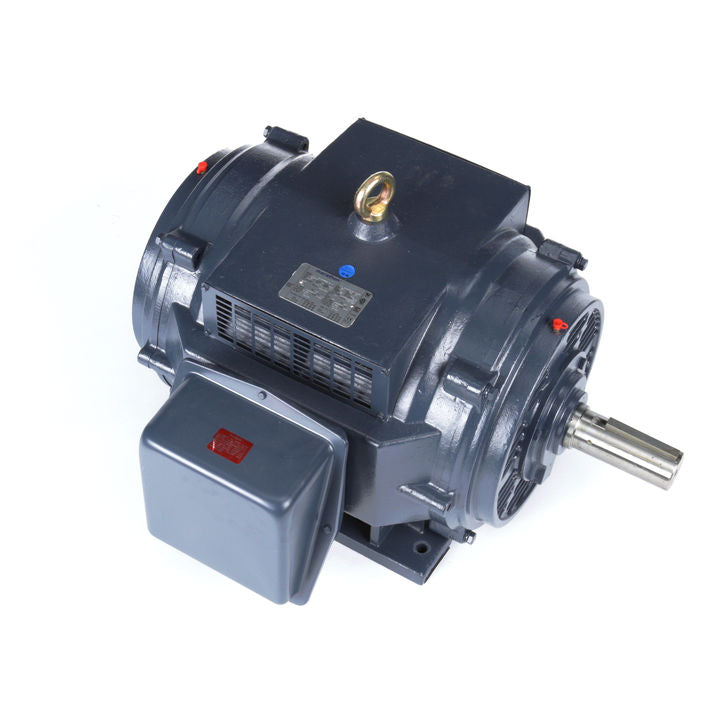

GT0045, 365TSTDCB6001, 100 Hp, 3600 Rpm, 365T FR, 208-230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

GT0045, 365TSTDCB6001, 100 Hp, 3600 Rpm, 365T FR, 208-230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

Engineering Data

Nameplate Specifications

Output HP 100 Hp
Output KW  75 kW
Frequency  60 Hz
Voltage  230/460 V
Current  218/109 A
Speed  3565 rpm
Service Factor  1.15
Phases  3
Efficiency  93.6 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  365TS
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6312
Opp Drive End Bearing Size  6312
UL  Recognized
CSA  Y
CE  Y
IP Code  12

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method PWS & Y D RUN OR INV
Poles 2
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  T
Overall Length  31.14 in
Shaft Diameter  1.88 in
Shaft Extension  3.75 in
Assembly/Box Mounting  F1/F2 CAPABALE
