Industrial Motors

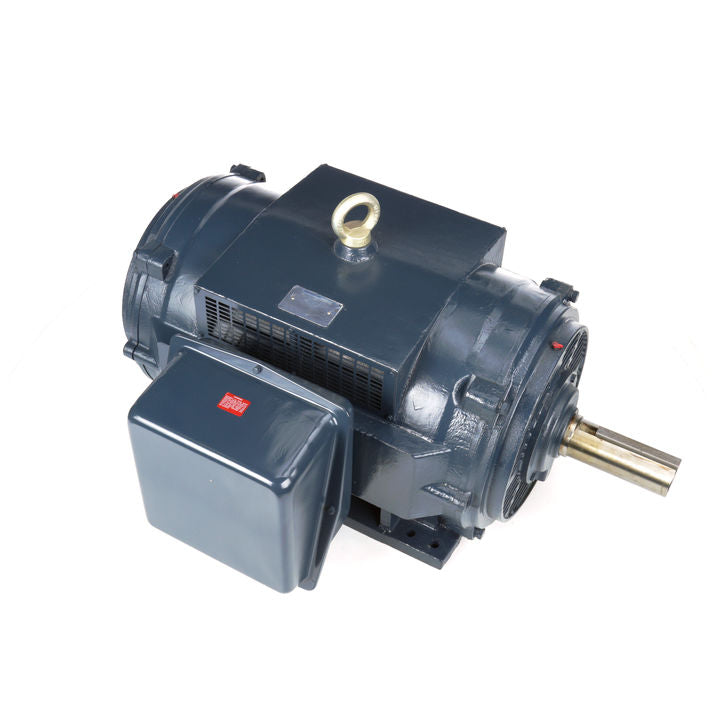

Marathon Electric GT0054A, 444TSTDC16003, 200 Hp, 3600 Rpm, 444TS FR, 460 PWS Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

Marathon Electric GT0054A, 444TSTDC16003, 200 Hp, 3600 Rpm, 444TS FR, 460 PWS Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

$13,305.27
$13,305.27
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$13,305.27 $12,640.01
Sale

GT0054A, 444TSTDC16003, 200 Hp, 3600 Rpm, 444TS FR, 460 PWS Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

Engineering Data

Output HP 200 Hp
Output KW  149 kW
Frequency  60 Hz
Voltage  460 V
Current  215 A
Speed  3582 rpm
Service Factor  1.15
Phases  3
Efficiency  95 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  444T
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6314
Opp Drive End Bearing Size  6314
UL  Recognized
CSA  Y
CE  Y
IP Code  12

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  PWS OR INVERTER
Poles  6
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  TS
Overall Length  40.83 in
Shaft Diameter  2.38 in
Shaft Extension  4.75 in
Assembly/Box Mounting  F1/ F2 CAPABLE
