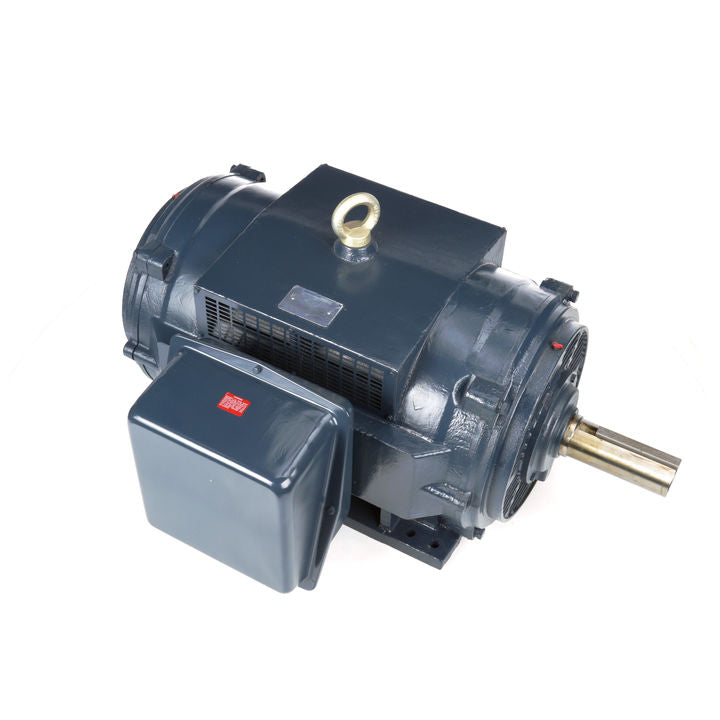

Marathon Electric GT0073, 40 Hp, 1800 Rpm, 324T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 324TTDBD6026.

GT0073, 40 Hp, 1800 Rpm, 324T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 324TTDBD6026.

Engineering Data

Output HP:40 Hp
Output KW:30.0 kW
Frequency:60 Hz
Voltage:230/460 V
Current:95.5/48.0 A
Speed:1780 rpm
Service Factor:1.15
Phase:3
Efficiency:94.1 %
Power Factor:83
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:324T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6312
Opp Drive End Bearing Size:6311
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Part Wdg Start & Wye Start Delta Run Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:.2197 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:28.55 in
Shaft Diameter:2.125 in
Shaft Extension:5.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
