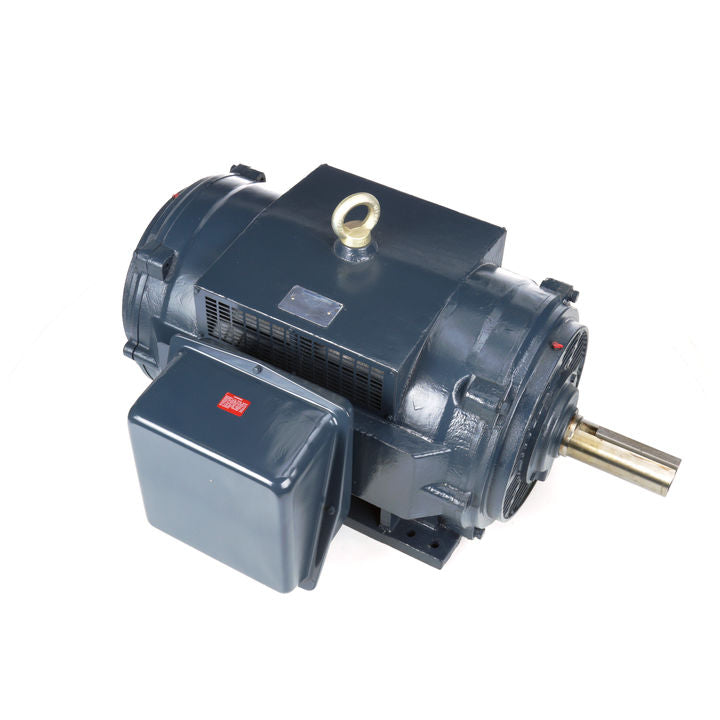

Marathon Electric GT0078, 50 Hp, 1800 Rpm, 326TS FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 326TSTDBD6026

GT0078, 50 Hp, 1800 Rpm, 326TS FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 326TSTDBD6026.

Engineering Data

Output HP:50 Hp
Output KW:37.0 kW
Frequency:60 Hz
Voltage:230/460 V
Current:118.0/59.0 A
Speed:1780 rpm
Service Factor:1.15
Phase:3
Efficiency:94.5 %
Power Factor:84
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:326T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6312
Opp Drive End Bearing Size:6311
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Wye Start Delta Run Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:.16 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:29.73 in
Shaft Diameter:2.125 in
Shaft Extension:5.25 in
Assembly/Box Mounting:F1/F2 CAPABLEE
