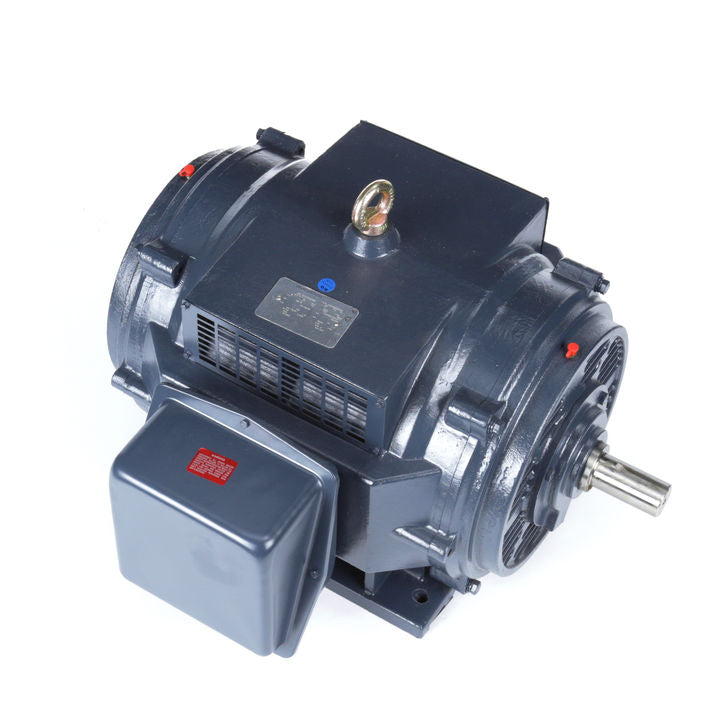

GT0094, 365TSTDCB6060, 75 Hp, 1800 Rpm, 365TS FR, 230/460 Vac, 3 PH, Dripproof, C-Face with Base, Close-Coupled Pump, Premium Motor

GT0094, 365TSTDCB6060, 75 Hp, 1800 Rpm, 365TS FR, 230/460 Vac, 3 PH, Dripproof, C-Face with Base, Close-Coupled Pump, Premium Motor

Engineering Data

Nameplate Specifications

Output HP  75 Hp
Output KW  56 kW
Frequency  60 Hz
Voltage  230/460 V
Current  174/87 A
Speed  1785 rpm
Service Factor  1.15
Phases  3
Efficiency  95 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  365TS
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6314
Opp Drive End Bearing Size  6313
UL  Recognized
CSA  Y
CE  Y
IP Code  22

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  PWS & YDRUN OR INV
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  TS
Overall Length  31.14 in
Shaft Diameter  1.88 in
Shaft Extension  3.75 in
Assembly/Box Mounting  F1/F2 CAPABLE
