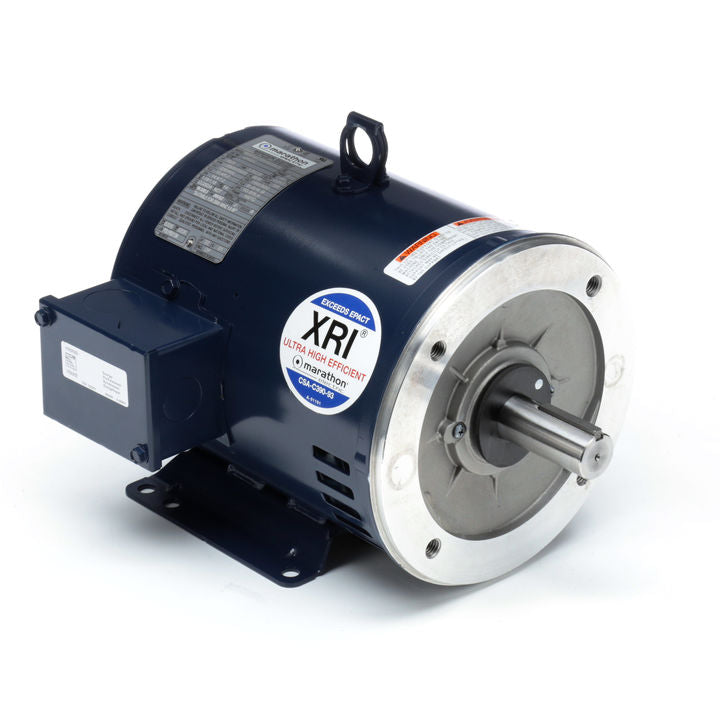

Marathon Electric GT0212, 5 Hp, 3600 Rpm, 182TC FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, General Purpose, EPAct Efficiency, 182TTDBD6003

GT0212, 5 Hp, 3600 Rpm, 182TC FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, General Purpose, EPAct Efficiency, 182TTDB6003

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60 Hz
Voltage:230/460 V
Current:12.4/6.2 A
Speed:3500 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:86
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:J
Frame:182TC
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:Y
IP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:13.20 in
Frame Length:9.00 in
Shaft Diameter:1.125 in
Shaft Extension:2.88 in
Assembly/Box Mounting:F1/F2 Capable
