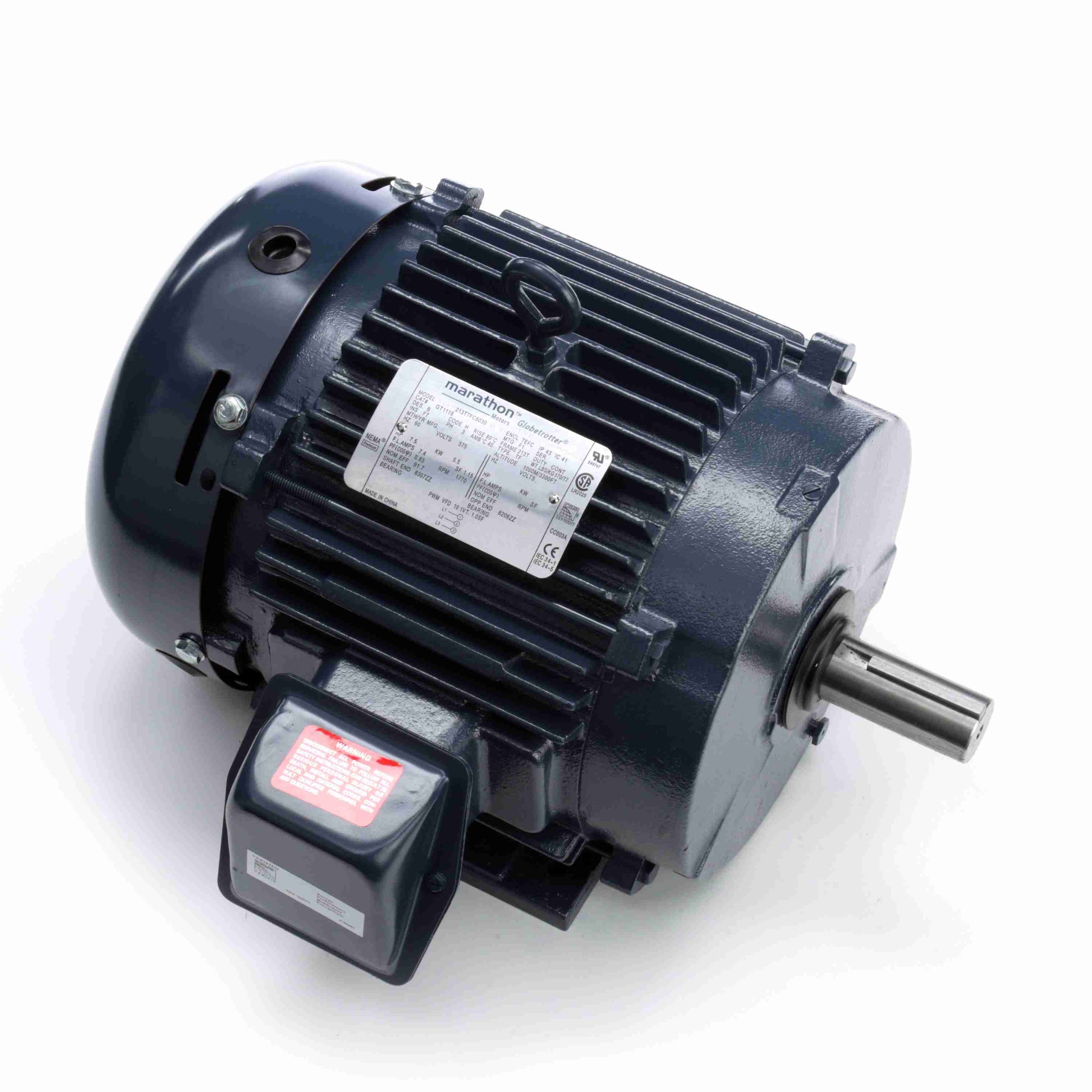

Marathon Electric GT1004, 1 1/2 Hp, 1800 Rpm, 145T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose, EPAct Efficiency, 145TTTC6026.

GT1004, 1 1/2 Hp, 1800 Rpm, 145T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose, EPAct Efficiency, 145TTTC6026.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:230/460 V
Current:4.0/2.0 A
Speed:1740 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:83
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:L
Frame:145T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:14.20 in
Shaft Diameter:0.875 in
Shaft Extension:2.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
