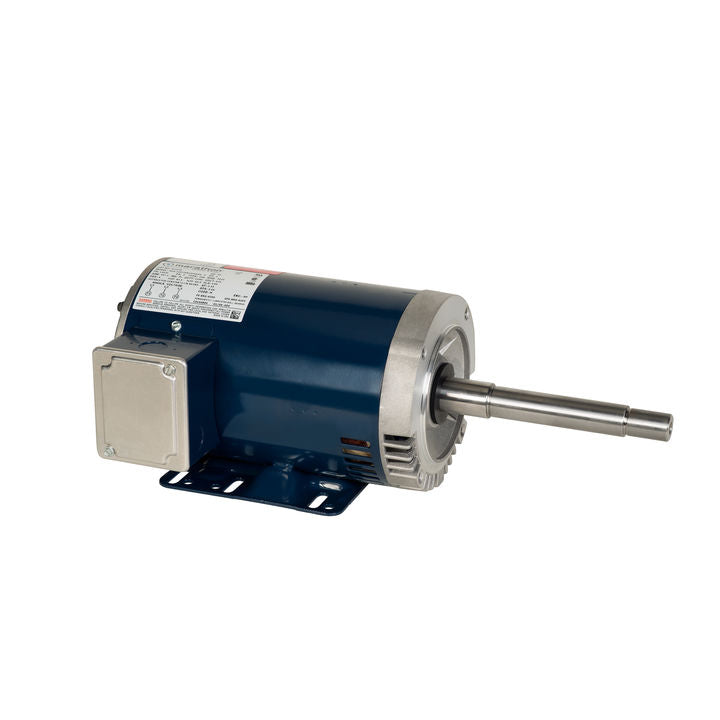

Marathon Electric GT2408A, 2 Hp, 1200 Rpm, 184JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 184TTDBD6085.

GT2408A, 2 Hp, 1200 Rpm, 184JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 184TTDBD6085.

Engineering Data

Output HP : 2 HP
Output KW : 1.5 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 5.8/2.9 A
Speed : 1175 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 87.5 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : L
Frame : 184JP
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6307
Opp Drive End Bearing Size : 6205
UL : Recognized
CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 6
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : JP
Shaft Diameter : 1.25 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856068972
