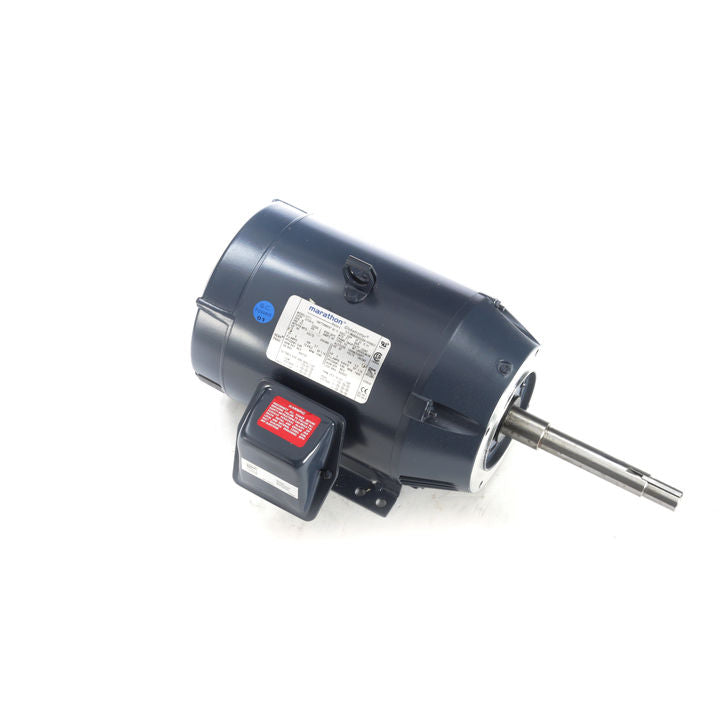

Marathon Electric GT2413A, 5 Hp, 1800 Rpm, 184JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Close-Coupled Pump, JP, 184TTDBD6037

Marathon Electric GT2413A, 5 Hp, 1800 Rpm, 184JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Close-Coupled Pump, JP, 184TTDBD6037

$701.73
$701.73
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$701.73 $666.65
Sale

GT2413A, 5 Hp, 1800 Rpm, 184JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Close-Coupled Pump, JP, 184TTDBD6037

General Specifications

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60 Hz
Voltage:230/460 V
Current:12.6/6.3 A
Speed:1765 rpm
Service Factor:1.15
Phase:3
Efficiency:89.5 %
Power Factor:82.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:J
Frame:184JP
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:2.688 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JP
Shaft Diameter:0.874 in
Assembly/Box Mounting:F1/F2 CAPABLE
