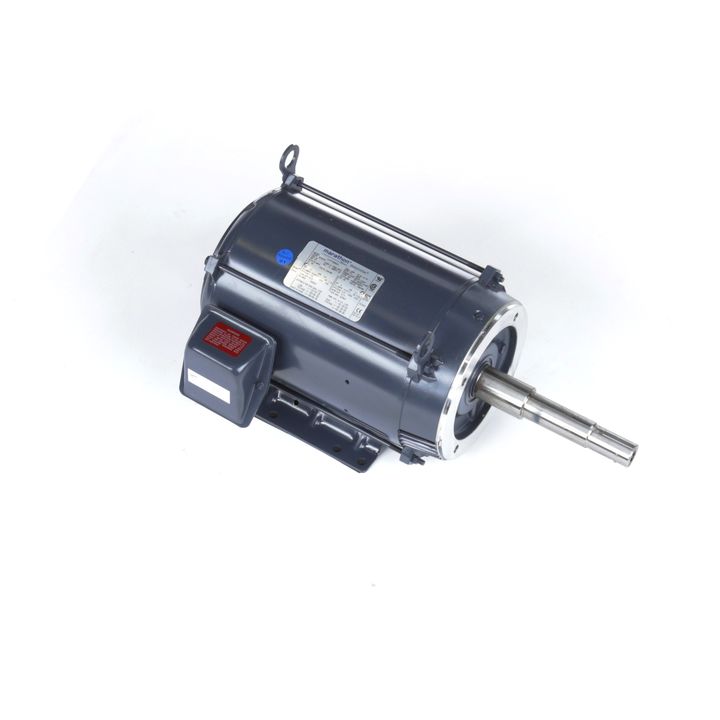

Marathon Electric GT2418, 10 Hp, 3600 Rpm, 213JP FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 213TTDB6012.

GT2418, 10 Hp, 3600 Rpm, 213JP FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 213TTDB6012.

Engineering Data

Nameplate Specifications

Output HP  10 Hp
Output KW  7.5 kW
Frequency  60 Hz
Voltage  230/460 V
Current  17.2/11.5 A
Speed 3495 RPM
Service Factor  1.15
Phases  3
Efficiency  89.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  F
Frame  213JP
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6309
Opp Drive End Bearing Size  6209
UL  Recognized
CSA  Y
CE  Y
IP Code  22

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles  2
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  JP
Overall Length  23.11 in
Shaft Diameter  1.25 in
Shaft Extension  8.14 in
Assembly/Box Mounting  F1/F2 CAPABLE
