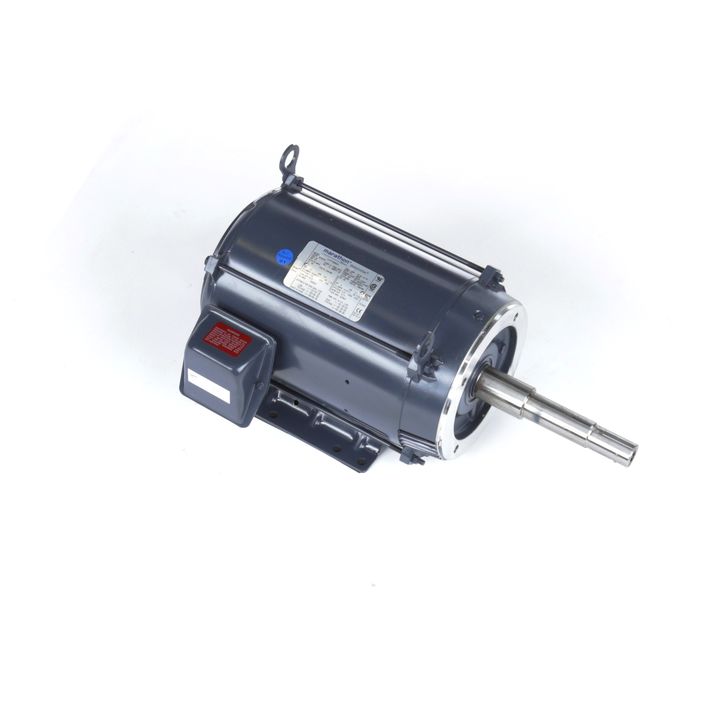

Marathon Electric GT2418A, 10 Hp, 3600 Rpm, 213JP FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 213TTDBD6012.

GT2418A, 10 Hp, 3600 Rpm, 213JP FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 213TTDBD6012.

Engineering Data

Output HP : 10 Hp
Output KW : 7.5 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 24.3/12.2 AS
peed : 3520 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 89.5 %
Duty : Continuous Insulation
Class : F Design
Code : B
KVA Code : G
Frame : 213TV
Enclosure : Drip Proof
Overload Protector : No Ambient
Temperature : 40 °C
Drive End Bearing Size : 6307
Opp Drive End Bearing Size : 6202
UL : Recognized CSA : Y
CE : Y IP
Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 2
Rotation : Reversible
Mounting : Rigid Base Motor
Orientation : Horizontal Or Shaft Down
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T Overall
Length : 23.11 in
Frame Length : 11.15 in
Shaft Diameter : 1.249 in
Shaft Extension : 8.39 in
Assembly/Box Mounting : F1/F2 CAPABLE
