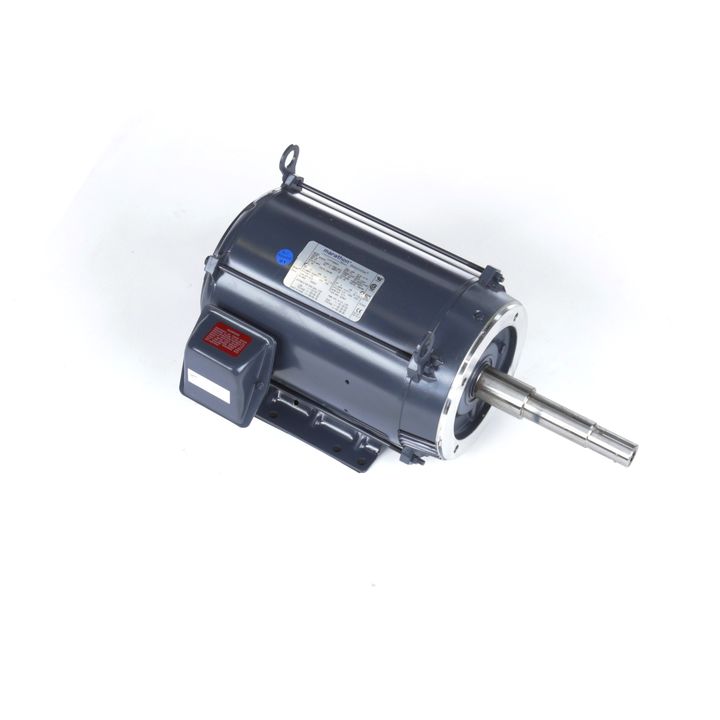

GT2422, 254TTDCA6037, 15 Hp, 1800 Rpm, 254JP FR, 208- 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump,

GT2422, 254TTDCA6037, 15 Hp, 1800 Rpm, 254JP FR, 208- 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump,

Engineering Data

Nameplate Specifications

Output HP  15 Hp
Output KW  11.2 kW
Frequency  60 Hz
Voltage  230/460 V
Current  36.5/18.3 A
Speed 3490 RPM
Service Factor  1.15
Phases  3
Efficiency  93 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  254JP
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6309
Opp Drive End Bearing Size  6208
UL  Recognized
CSA  Y
CE  Y
IP Code  12

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  JP
Overall Length  27.32 in
Shaft Diameter  1.25 in
Shaft Extension  8.16 in
Assembly/Box Mounting  F1/F2 CAPABLE
