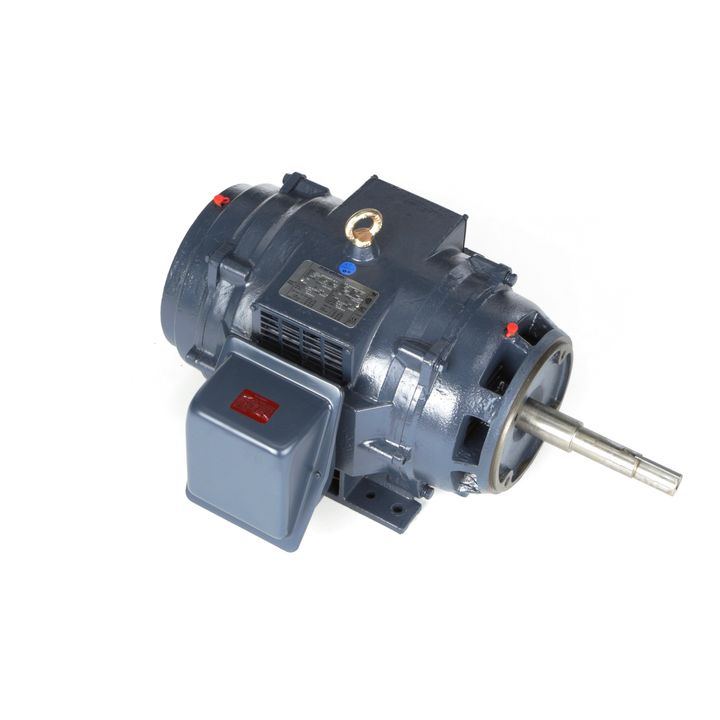

GT2425, 256TTDCA6037, 20 Hp, 1800 Rpm, 256JP FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump,

GT2425, 256TTDCA6037, 20 Hp, 1800 Rpm, 256JP FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump,

Engineering Data

Nameplate Specifications

Output HP  20 Hp
Output KW  14.9 kW
Frequency  60 Hz
Voltage  230/460 V
Current  48/24 A
Speed 3545 RPM
Service Factor  1.15
Phases  3
Efficiency  91 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  256JP
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6309
Opp Drive End Bearing Size  6208
UL  Recognized
CSA  Y
CE  Y
IP Code  22

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  JP
Overall Length  28.9 in
Shaft Diameter  1.25 in
Shaft Extension  8.16 in
Assembly/Box Mounting  F1/F2 CAPABLE
