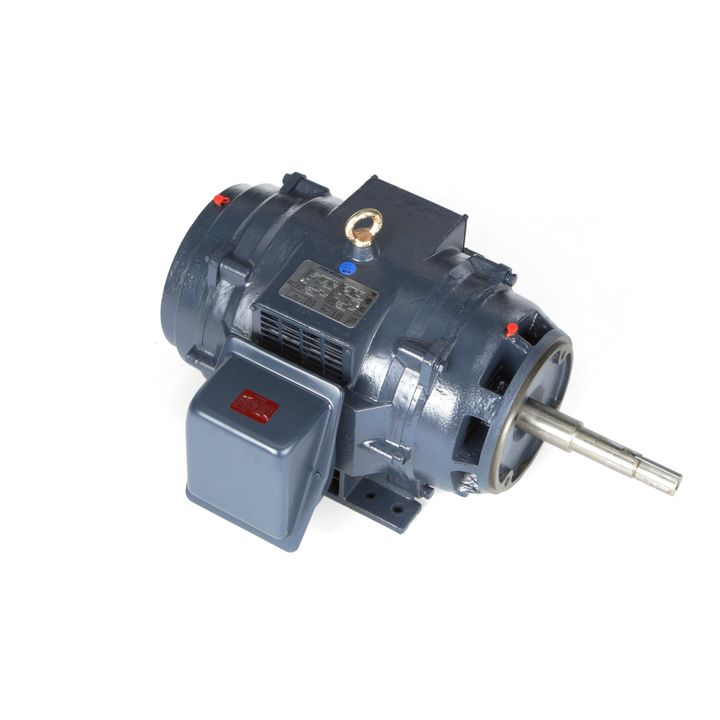

Marathon Electric GT2461, 20 Hp, 3600 Rpm, 254JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 254TTDBD6012.

GT2461, 20 Hp, 3600 Rpm, 254JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 254TTDBD6012.

Engineering Data

Output HP : 20 HP
Output KW : 14.9 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 48.0/24.0 A
Speed : 3552 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 91 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : F
Frame : 254JP
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6208
UL : Recognized
CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 2
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : JP
Overall Length : 27.32 in
Frame Length : 10.62 in
Shaft Diameter : 1.249 in
Shaft Extension : 8.41 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856062895
Weight : 525.00 LB
