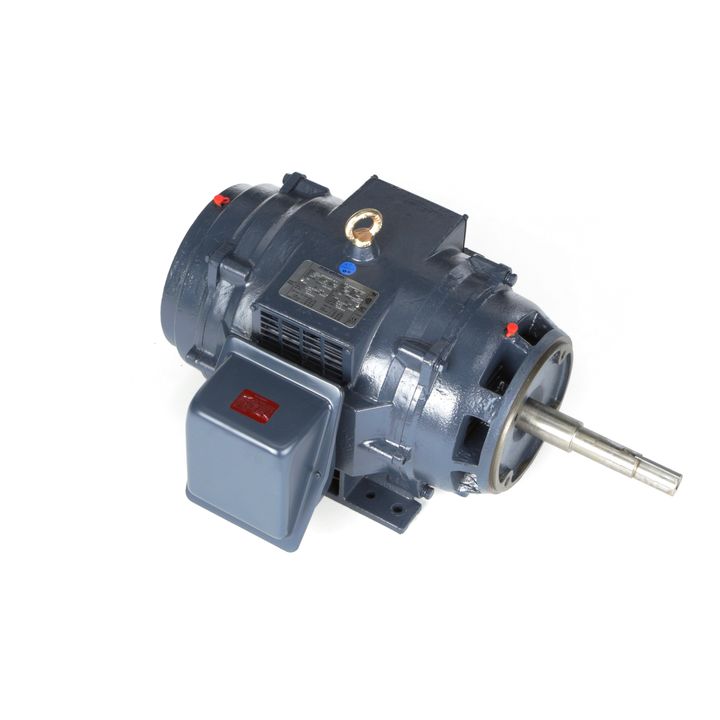

Marathon Electric GT2477, 50 Hp, 1800 Rpm, 326JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 326TTDBD6037.

GT2477, 50 Hp, 1800 Rpm, 326JP FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 326TTDBD6037.

Engineering Data

Output HP : 50 HP
Output KW : 37.0 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 118.0/59.0 A
Speed : 1780 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 94.5 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 326JP
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6312
Opp Drive End Bearing Size : 6311
UL : Recognized
CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Wye Start Delta Run Or Inverter
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : JP
Overall Length : 33.00 in
Frame Length : 15.74 in
Shaft Diameter : 1.249 in
Shaft Extension : 8.37 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856061553
Weight : 596.00 LB
