Industrial Motors

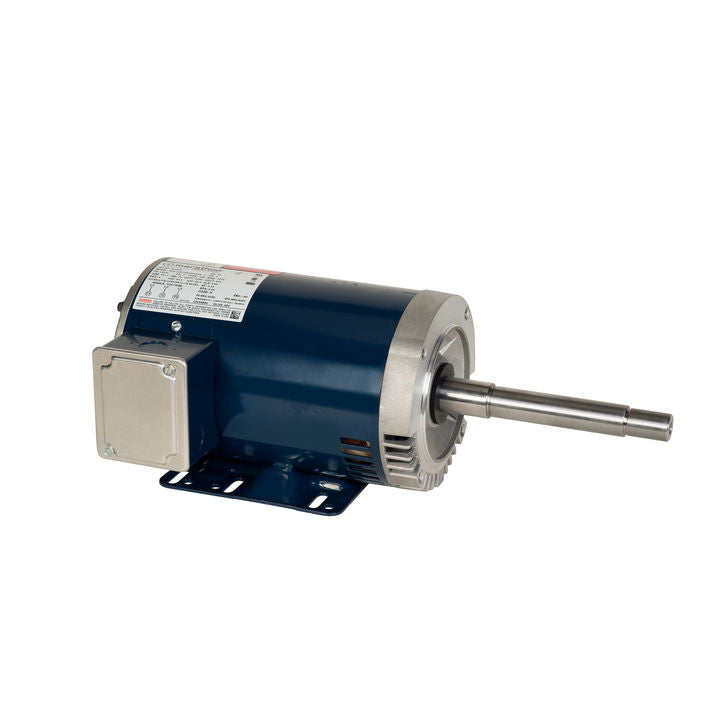

Marathon Electric GT2505A, 1 1/2Hp, 1200 Rpm, 182JP FR, 575 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 182TTDBD6095.

Marathon Electric GT2505A, 1 1/2Hp, 1200 Rpm, 182JP FR, 575 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 182TTDBD6095.

$635.49
$635.49
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$635.49 $603.72
Sale

GT2505A, 1 1/2Hp, 1200 Rpm, 182JP FR, 575 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 182TTDBD6095.

Engineering Data

Output HP:1.50 Hp
Output KW:1.12 kW
Frequency:60 Hz
Voltage:575 V
Current:1.9 A
Speed:1180 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:70
Duty:CONTINUOUS
Insulation Class:F3
Design Code:A
KVA Code:N
Frame:182JP
Enclosure:DP
Thermal Protection:NOT
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6205
UL:V - LI,ME-INS,CONST UL RECCSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:LINE OR INVERTER
Poles:6
Rotation:REV
Resistance Main:9.48 Ohms
Mounting:RIGID
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:ROLLED STEEL
Shaft Type:JP
Shaft Diameter:1.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
