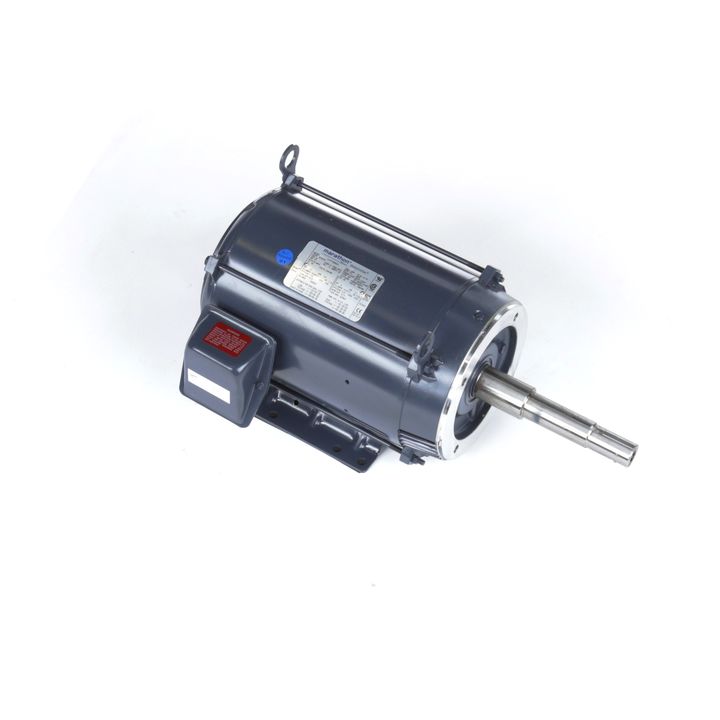

Marathon Electric GT2518A, 10 Hp, 3600 Rpm, 213JP FR, 575 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 213TTDBD6013.

GT2518A, 10 Hp, 3600 Rpm, 213JP FR, 575 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, 213TTDBD6013.

Engineering Data

Output HP : 10 HP
Output KW : 7.5 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 9.7 A
Speed : 3520 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 89.8 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 213JP
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6207
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 2
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : JP
Overall Length : 23.11 in
Frame Length : 11.15 in
Shaft Diameter : 1.249 in
Shaft Extension : 8.39 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856064035
Weight : 156.00 LB
