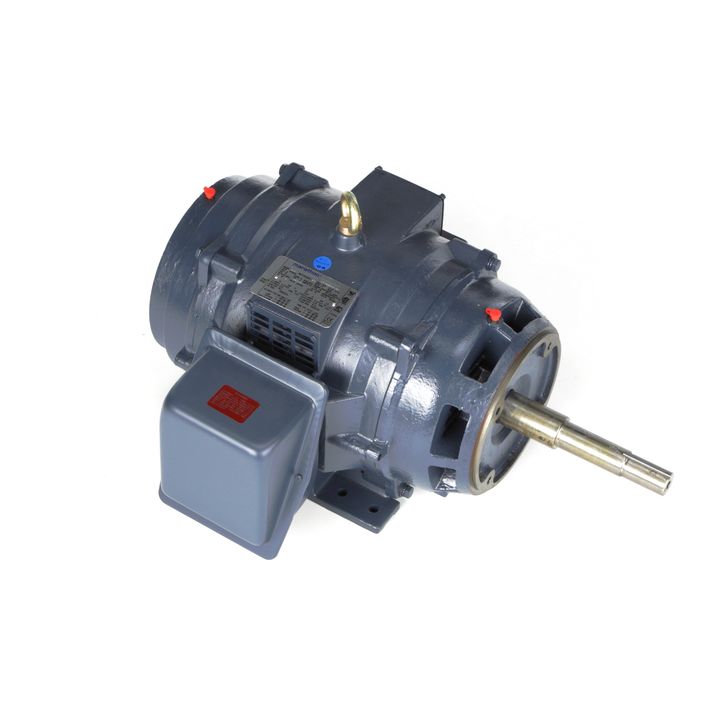

Marathon Electric GT2568, 25 Hp, 1200 Rpm, 324JP FR, 575 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, JP, 324TTDBD6095

GT2568, 25 Hp, 1200 Rpm, 324JP FR, 575 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, JP, 324TTDBD6095

Engineering Data

Output HP : 25 HP
Output KW : 18.7 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 25.9 A
Speed : 1185 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 93 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 324JP
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6312
Opp Drive End Bearing Size : 6311
UL : Recognized
CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 6
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : JP
Overall Length : 31.82 in
Frame Length : 14.56 in
Shaft Diameter : 1.249 in
Shaft Extension : 8.37 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856063694
Weight : 535.00 LB
