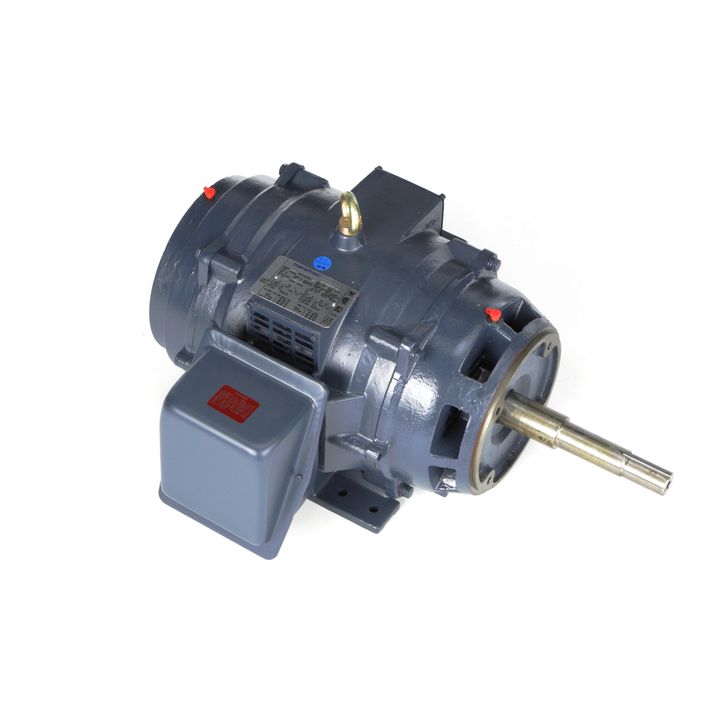

Marathon Electric GT2572, 40 Hp, 3600 Rpm, 286JP FR, 575 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, JP, 286TTDBD6013.

GT2572, 40 Hp, 3600 Rpm, 286JP FR, 575 Vac, 3 PH, Dripproof, C-Face Footed, Closed-Coupled Pump, JP, 286TTDBD6013.

Engineering Data

Output HP : 40 HP
Output KW : 30.0 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 37.5 A
Speed : 3562 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 92.4 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : F
Frame : 286JP
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6311
Opp Drive End Bearing Size : 6211
UL : Recognized
CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 2
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : JP
Overall Length : 30.91 in
Frame Length : 13.97 in
Shaft Diameter : 1.249 in
Shaft Extension : 8.4 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856063595
