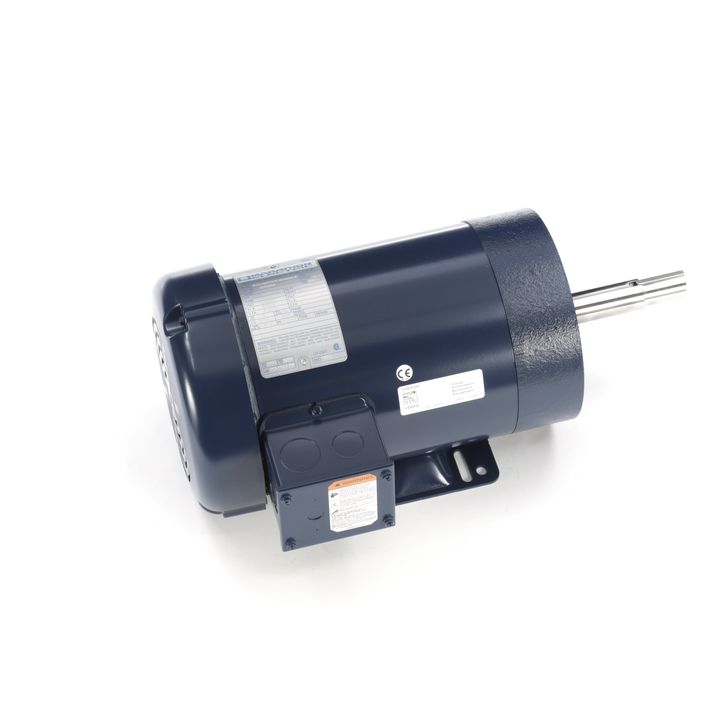

Marathon Electric GT3108A, 2 Hp, 1200 Rpm, 184JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 184TTFBD6082.

GT3108A, 2 Hp, 1200 Rpm, 184JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 184TTFBD6082.

Engineering Data

Output HP : 2 HP
Output KW : 1.5 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 6.0/3.0 A
Speed : 1173 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 88.5 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : K
Frame : 184JM
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6307
Opp Drive End Bearing Size : 6205
UL : Listed
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 6
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : JM
Shaft Diameter : 0.874 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856069092
Weight : 112.00 LB
