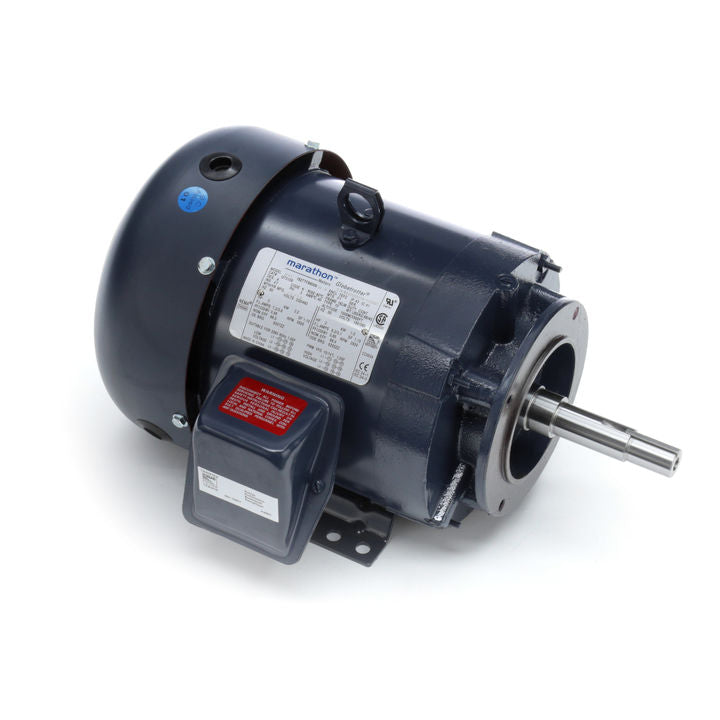

Marathon Electric GT3111A, 3 Hp, 1200 Rpm, 213JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 213TTFBD6082.

GT3111A, 3 Hp, 1200 Rpm, 213JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 213TTFBD6082.

Engineering Data

Output HP : 3 HP
Output KW : 2.2 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 8.6/4.3 A
Speed : 1185 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 89.5 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : J
Frame : 213JMV
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 6
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal Or
Shaft Down Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : JM
Overall Length : 20.27 in
Frame Length : 9.65 in
Shaft Diameter : 0.874 in
Shaft Extension : 4.5 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856062512
Weight : 133.00 LB
