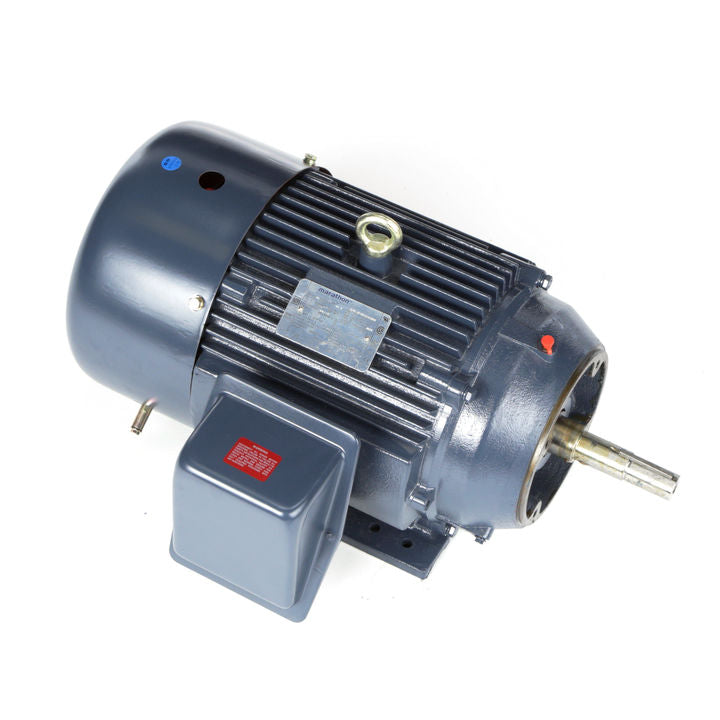

Marathon Electric GT3124A, 20 Hp, 3600 Rpm, 256JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 256TTFCA6006.

GT3124A, 20 Hp, 3600 Rpm, 256JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 256TTFCA6006.

Engineering Data

Output HP : 20 HP
Output KW : 14.9 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 47.5/23.7 A
Speed : 3540 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 91 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 256JM
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6209
UL : Listed
CSA : Y CE : Y IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 2
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : JM
Overall Length : 27.89 in
Frame Length : 11.73 in
Shaft Diameter : 1.375 in
Shaft Extension : 5.75 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856062796
Weight : 312.00 LB
