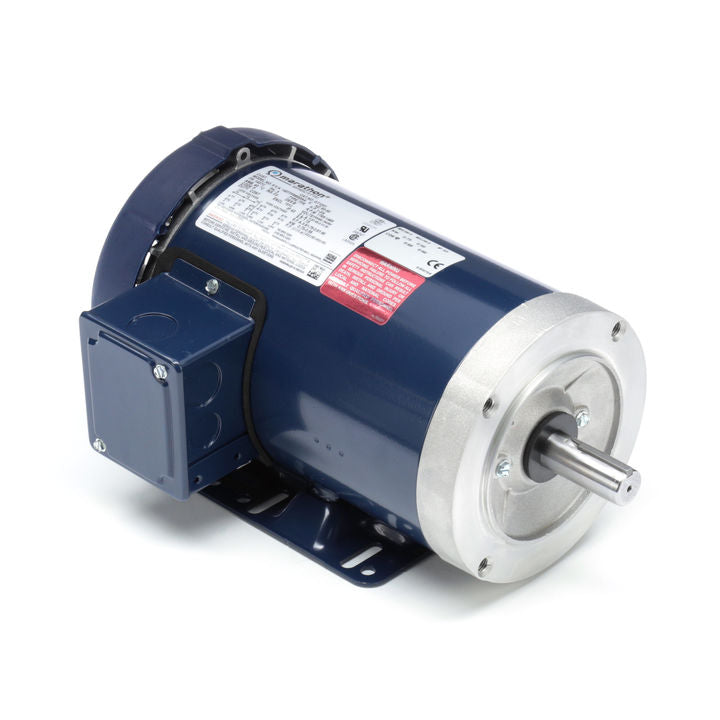

Marathon Electric GT3127A, 25 Hp, 3600 Rpm, 284JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 284TTFCD6006.

GT3127A, 25 Hp, 3600 Rpm, 284JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 284TTFCD6006.

Engineering Data

Output HP : 25 HP
Output KW : 18.7 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 60.0/30.0 A
Speed : 3555 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 91.7 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 284JM
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6311
Opp Drive End Bearing Size : 6211
UL : Listed
CSA : Y CE : Y IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Wye Start Delta Run Or Inverter
Poles : 2
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : JM
Overall Length : 27.52 in
Frame Length : 11.41 in
Shaft Diameter : 1.26 in
Shaft Extension : 5.5 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856063168
Weight : 403.00 LB
