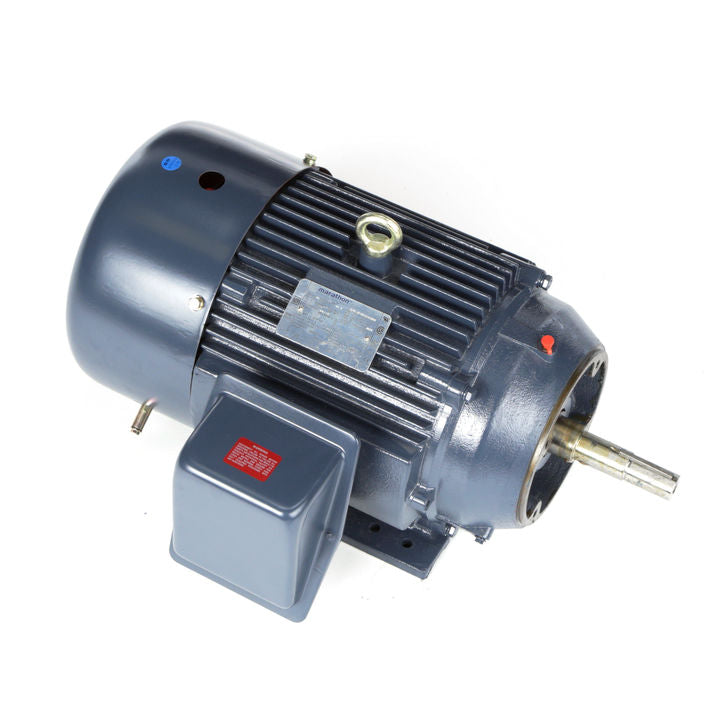

Marathon Electric GT3128A, 25 Hp, 1800 Rpm, 284JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 284TTFCD6032.

GT3128A, 25 Hp, 1800 Rpm, 284JM FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed (Rigid Base), Closed-Coupled Pump, JM, 284TTFCD6032.

Engineering Data

Output HP : 25 HP
Output KW : 18.7 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 61.0/30.5 A
Speed : 1775 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 93.6 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 284JM
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6311
Opp Drive End Bearing Size : 6211
UL : Listed
CSA : Y CE : Y IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Wye Start Delta Run Or Inverter
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : JM
Overall Length : 27.52 in
Frame Length : 11.41 in
Shaft Diameter : 1.375 in
Shaft Extension : 5.5 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856062932
Weight : 462.00 LB
