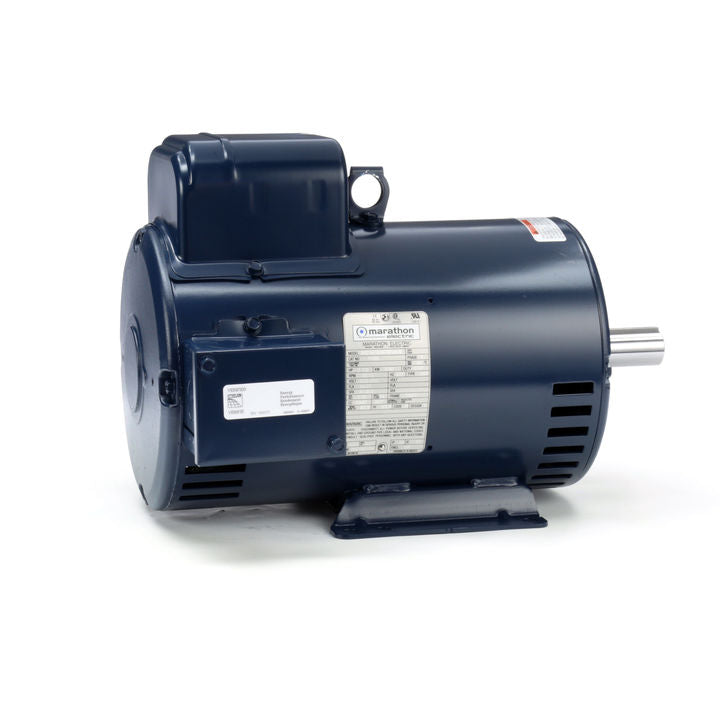

Marathon Electric I1108, 184TBDW7001, 7 1/2 Hp, 3600 Rpm, 184T FR, 208-230 Vac, 1 PH, Air Compressor, Dripproof, Rigid Base, No Overload

**This motor has been replaced by Model# I108A**
I1108, 184TBDW7001, 7 1/2 Hp, 3600 Rpm, 184T FR, 208-230 Vac, 1 PH, Air Compressor, Dripproof, Rigid Base, No Overload.

Engineering Data

60 Hertz
HP 7 1/2 Voltage 208-230
kW 5.60 FL Amps 34-31
RPM 3600
FL Eff 82.5 % SF 1.15

Phase 1 Insulation Class F
Frame 184T Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START CAP RUN
Assembly F1 ONLY KVA Code H
Drive End Bearing BALL IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6206 Rotation SELECTIVE CCW
Opposite End Bearing Size 6205
Weight 103 LB lbs
CE Y CSA Y
UL Y
Thermal Protection
