Industrial Motors

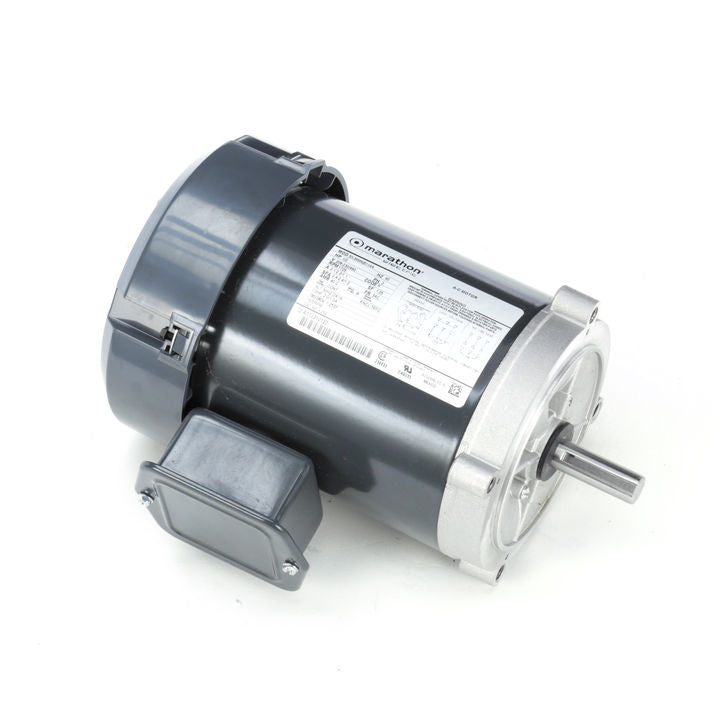

Marathon Electric K229, 1/2 Hp, 3600 Rpm, 56C FR, 208-230/460, 3 PH, Totally Enclosed, C-Face Footless, Centrifugal Pump (Jet Pump), 5K35JN46

Marathon Electric K229, 1/2 Hp, 3600 Rpm, 56C FR, 208-230/460, 3 PH, Totally Enclosed, C-Face Footless, Centrifugal Pump (Jet Pump), 5K35JN46

$359.00
$359.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$359.00 $341.05
Sale

K229, 1/2 Hp, 3600 Rpm, 56C FR, 208-230/460, 3 PH, Totally Enclosed, C-Face Footless, Centrifugal Pump (Jet Pump), 5K35JN46.

Engineering Data

60 Hertz
HP 1/2 Voltage 200-230/460
kW N/A FL Amps 2.1-2.0/1.0
RPM 3450
FL Eff 0 % SF 1.60

Phase 3 Insulation Class B
Frame 56C Duty Continuous
Enclosure TEFC Ambient 40
Mounting N/R NEMA Design N/A
Orientation Horizontal or Vertical Starting Type Squirrel Cage Induction
Assembly N/A KVA Code M
Drive End Bearing BALL IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 17MM
Opposite End Bearing Size 17MM Hazardous Location N/R
Weight 17 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection None
