Industrial Motors

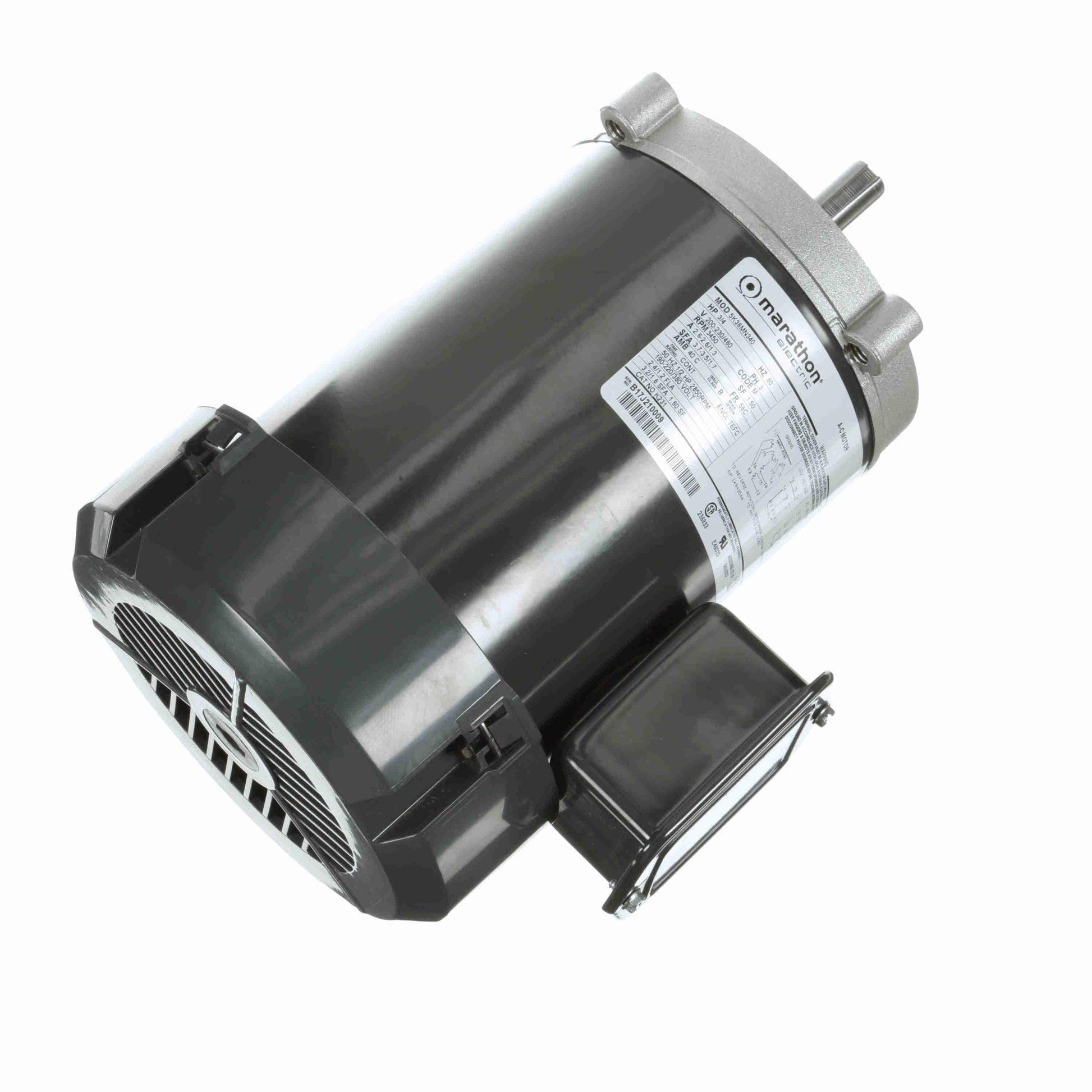

Marathon Electric K231, 5K36MN340, 3/4 Hp, 3600 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-face Footless, Centrifugal Pump (Jet Pump)

Marathon Electric K231, 5K36MN340, 3/4 Hp, 3600 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-face Footless, Centrifugal Pump (Jet Pump)

$481.00
$481.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$481.00 $456.95
Sale

**This motor has been replaced by Model# P103**
K231, 5K36MN340, 3/4 Hp, 3600 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-face Footless, Centrifugal Pump (Jet Pump).

Engineering Data

60 Hertz
HP 3/4 Voltage 200-230/460
kW N/A FL Amps 2.6-2.6/1.3
RPM 3450
FL Eff 0 % SF 1.50

Phase 3 Insulation Class B
Frame 56C Duty Continuous
Enclosure TEFC Ambient 40
Mounting N/R NEMA Design N/A
Orientation Horizontal or Vertical Starting Type Squirrel Cage Induction
Assembly N/A KVA Code M
Drive End Bearing BALL IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 17MM
Opposite End Bearing Size 17MM Hazardous Location N/R
Weight 18 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection None
