Industrial Motors

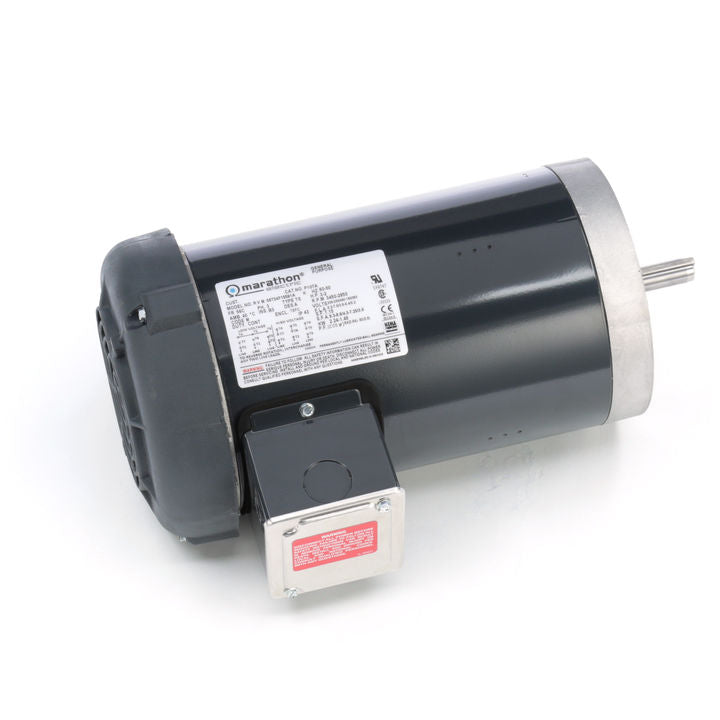

Marathon Electric K239, 5K49ZN2189, 3 Hp, 3600 Rpm, 56C FR, 208-230/460, 3 PH, Totally Enclosed, C-face Footless, Centrifugal Pump (Jet Pump)

Marathon Electric K239, 5K49ZN2189, 3 Hp, 3600 Rpm, 56C FR, 208-230/460, 3 PH, Totally Enclosed, C-face Footless, Centrifugal Pump (Jet Pump)

$795.00
$795.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$795.00 $755.25
Sale
Featured Products is no longer manufacturing this motor, possible replacement is the following Featured Products part# P107A

**This motor has been replaced by Model# P107A**
K239, 5K49ZN2189, 3 Hp, 3600 Rpm, 56C FR, 208-230/460, 3 PH, Totally Enclosed, C-face Footless, Centrifugal Pump (Jet Pump).

Engineering Data

60 Hertz
HP 3 Voltage 230/460
kW N/A FL Amps 8.0/4.0
RPM 3450
FL Eff 0 % SF 1.0

Phase 3 Insulation Class B
Frame 56C Duty Continuous
Enclosure TEFC Ambient 40
Mounting N/R NEMA Design B
Orientation Horizontal or Vertical Starting Type Squirrel Cage Induction
Assembly N/A KVA Code H
Drive End Bearing BALL IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 25MM
Opposite End Bearing Size 17MM Hazardous Location N/R
Weight 49 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection None
