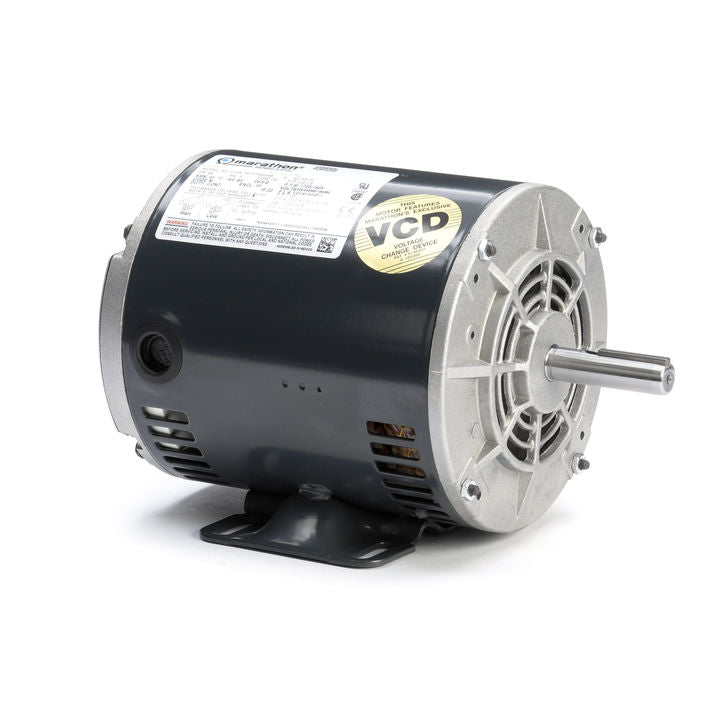

Marathon Electric K259, 5K49MN4110, 1 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency.

Marathon Electric K259, 5K49MN4110, 1 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency.

$915.00
$915.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$915.00 $869.25
Sale
Marathon Electric Motors is no longer manufacturing this motor, possible replacement is the following Marathon Electric Motors part# G563A

**This motor has been replaced by Model# G563A**
K259, 5K49MN4110, 1 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency.

Nameplate Specifications

Output HP  1 Hp
Output KW  .75 kW
Frequency  60 Hz
Voltage  208-230/460 V
Current  3.6-3.8 A
Speed  1725 rpm
Service Factor  1.25
Phases 3
Efficiency 0 %
Duty  CONT
Insulation Class  B
Design Code  B
KVA Code  L
Frame  56C
Enclosure  TEFC
Overload Protector  N/R
Ambient Temperature  40 °C
Drive End Bearing Size  6203
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  N

Technical Specifications

Electrical Type  Three Phase
Starting Method  N/R
Poles  4
Rotation  CCW/CW
Mounting  WB
Motor Orientation  ANY
Drive End Bearing  LOCKED
Opp Drive End Bearing  BALL
Overall Length  11.41 in
Frame Length 6.15 in
Shaft Extension .625 X 1.88 - .188 X .188 KEY in
