Industrial Motors

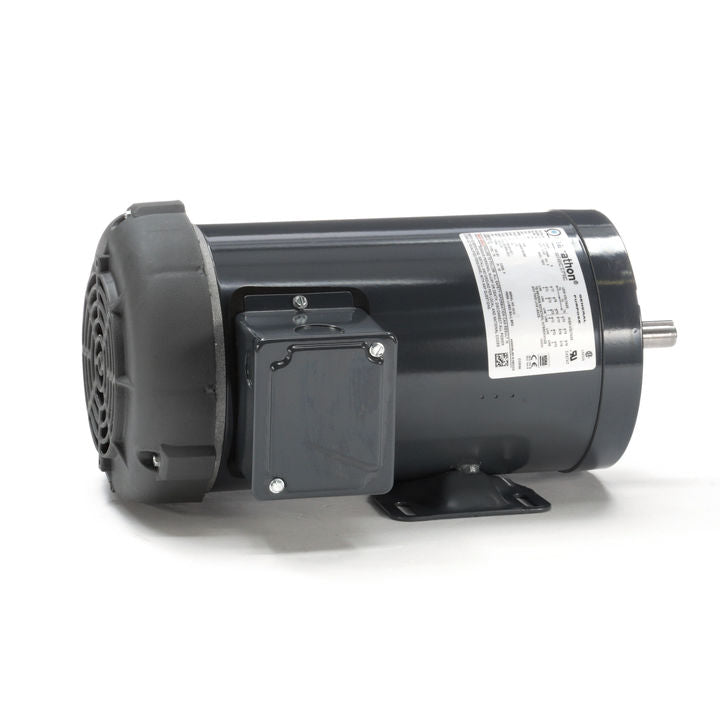

Marathon Electric K260, 1 1/2 Hp, 1800 Rpm, 56HC FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency

Marathon Electric K260, 1 1/2 Hp, 1800 Rpm, 56HC FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency

$773.00
$773.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$773.00 $734.35
Sale

**This motor has been replaced by Model# G564A**
K260, 1 1/2 Hp, 1800 Rpm, 56HC FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency.

Engineering Data

60 Hertz
HP 1.5 Voltage 208-230/460
kW N/A FL Amps 4.7-4.4/2.2
RPM 1725
FL Eff 0 % SF 1.25


Phase 3 Insulation Class B
Frame 56C Duty Continuous
Enclosure TEFC Ambient 40
Mounting WB NEMA Design B
Orientation Horizontal or Vertical Starting Type Squirrel Cage Induction
Assembly N/A KVA Code J
Drive End Bearing LOCKED IP Code
Opposite End Bearing BALL
Drive End Bearing Size 25MM
Opposite End Bearing Size 17MM Hazardous Location N/R
Weight 35 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection None
