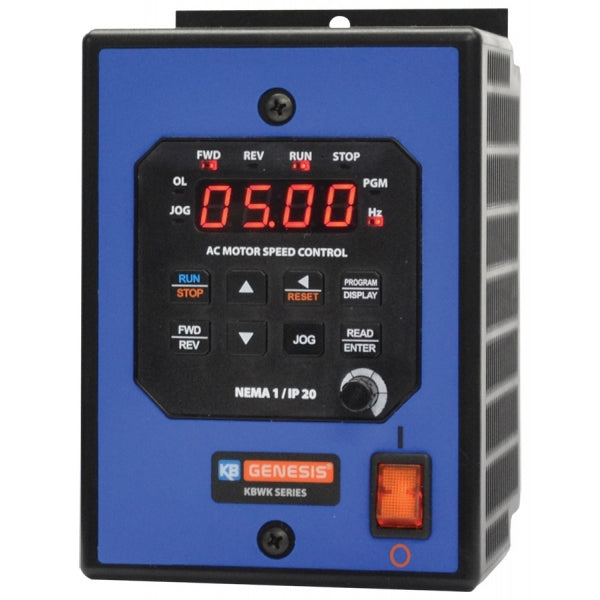

KB Electronics KBWK-23D Black (8860) 1/2 HP, 230 Vac 1-Phase Input, 230 Vac 3-Phase Output, Nema 1 Enclosure, Digital AC Variable Frequency Drives

KBWK-23D Black (8860) 1/2 HP, 230 Vac 1-Phase Input, 230 Vac 3-Phase Output, Nema 1 Enclosure, Digital AC Variable Frequency Drives

KBWK-23D Hybrid AC Drive A Digital AC Drive with Analog Interface Vented NEMA 1 / IP 20 Enclosure Primary Features: Horsepower (KW) 1/2 (.37) 1Ø Input 230 VAC, 50/60 Hz 3Ø Output 230 VAC On/Off AC Line Switch 200% Starting Torque Diagnostic LED Status Indicators GFCI Software with factory programming Additional Features: Flux Vector Compensation with Static Auto-Tune provides excellent speed regulation with high torque loads throughout the entire speed range. Auto energy saving at light loads. Smooth motor torque. Electronic Inrush Current Limit (EICLTM) Protection Run/Fault Relay Output Contacts Holding Torque at Zero Speed in "Stop" mode Undervoltage and Overvoltage Protection Short Circuit Protection, phase to phase Ride-Through momentary power loss Regeneration Protection eliminates tripping Basic Programmable Trimpot Adjustments Drive Option Included in Package (Not Installed): Forward-Stop-Reverse Switch Dimensions approx. in (cm). 6.06" (154) x 3.92" (102) x 3.65" (92.7).
