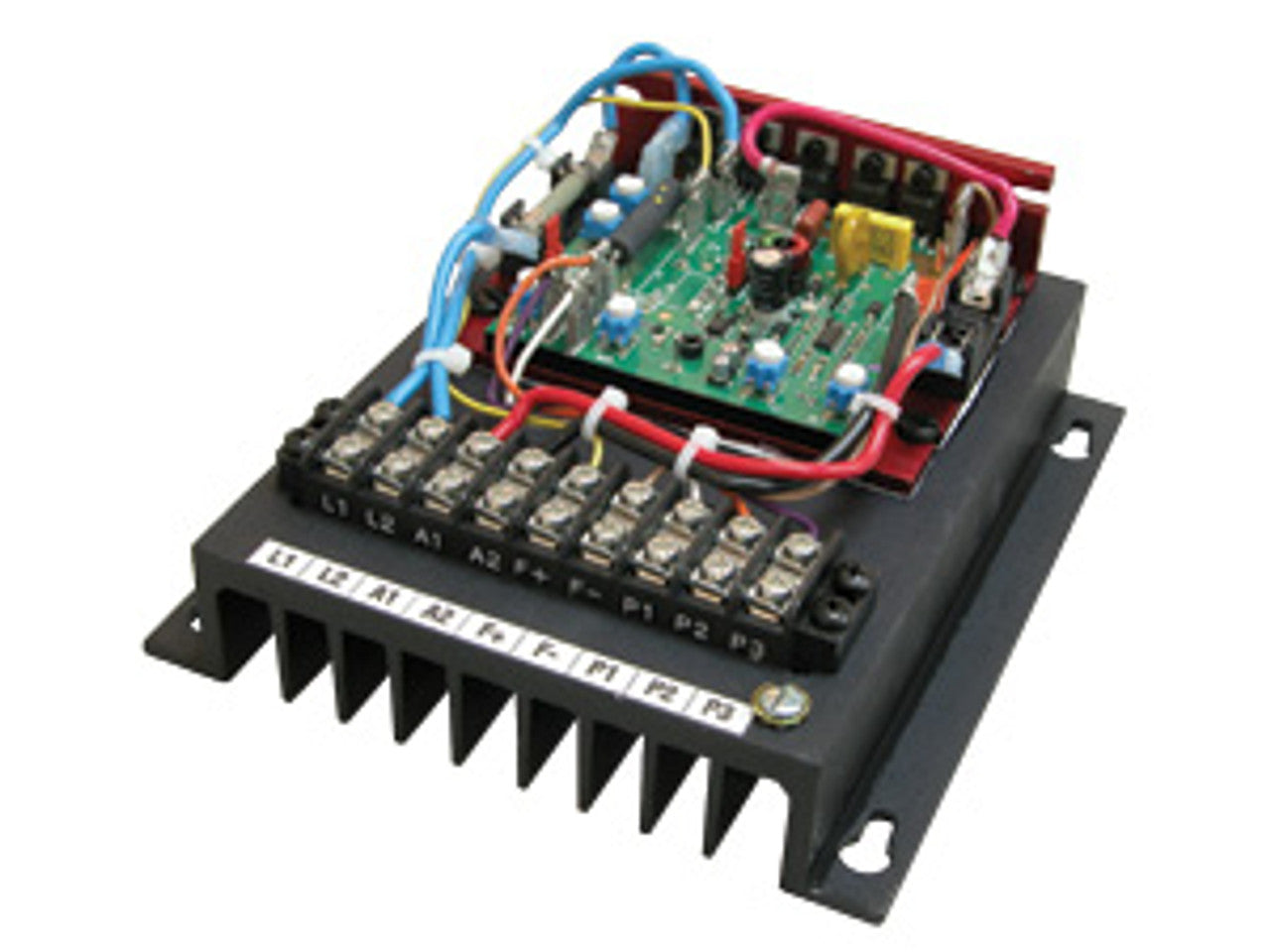

KB Electronics KBCC-125 (9936), SCR DC Drive, 115 Vac Input, 0-90 Vdc Output, thru 1 1/2 HP, Open Chassis

KB Electronics KBCC-125 (9936), SCR DC Drive, 115 Vac Input, 0-90 Vdc Output, thru 1 1/2 HP, Open Chassis

$257.04
$257.04
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$257.04 $177.36
Sale

KBCC-125 (9936), SCR DC Drive, 115 Vac Input, 0-90 Vdc Output, thru 1 1/2 HP, Open Chassis

The KBCC Series of DC Drives consist of two models rated for 1/100 to 3 horsepower motors. These chassis drives utilize the KBMM speed control to provide a low-cost, reliable SCR drive. Features include an Auxiliary Heat Sink, Barrier Terminal Block, AC line fuse, and an Armature fuse holder. This drive requires a Plug-in Horsepower Resistor®* to operate. The controls are ruggedly constructed and contain a 5k ohm potentiometer. This drive also contains Auto Inhibit® which provides a smooth, safe start during rapid switching of the AC line.

Dimensions: 6.3" x 7.0" x 2.60"
