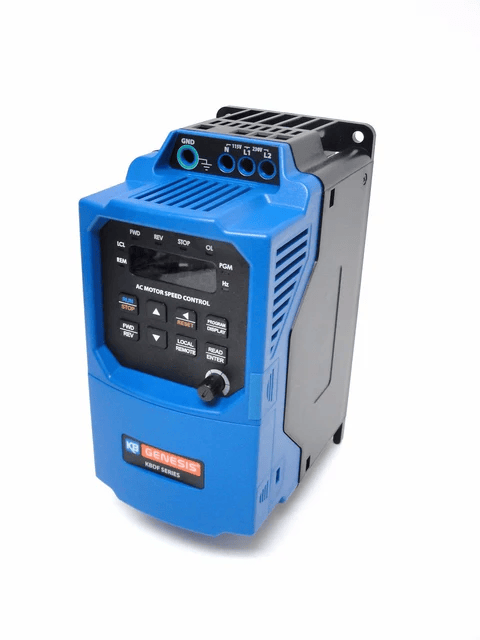

KB Electronics KBDF-29(1P) (9700) AC Drives, 3 HP, 230 Vac 1-Phase Input, 230 Vac 3-Phase Output, Chassis/IP 20 Enclosure, Digital Variable Frequency Drives with CSP

KBDF-29(1P) (9700) AC Drives, 3 HP, 230 Vac 1-Phase Input, 230 Vac 3-Phase Output, Chassis/IP 20 Enclosure, Digital Variable Frequency Drives with CSP

The KBDF series of digital AC drives are housed in IP‑20 enclosures. They are designed to operate 1/8 thru 5 HP 208 – 230 and 400/460 V, 50 & 60 Hz, 3‑phase AC and 1‑phase PSC induction motors. Flux vector control provides high torque, low noise, and excellent load regulation over a wide speed range. Adjustable Linear Acceleration and Deceleration make the drive suitable for soft‑start applications. Due to its user‑friendly design and simple to use and understand instruction manual, the KBDF is easy to install and operate. Setting the drive to specific applications is accomplished using the multi‑function keypad, which provides easy operation and programming of the drive. For more advanced programming, PC based Drive‑Link™ software is available.

Options: Memory Module, IODF Input/Output Multi-Function Expansion Module, Drive-Link™ Programming Kit and Modbus Serial Communication Module.
