Industrial Motors

KB Electronics KBMM-225 (9450), SCR DC Drives, 230 Vac Input, 0-180 Vac Output, thru 1 1/2 HP, Open Chassis

KB Electronics KBMM-225 (9450), SCR DC Drives, 230 Vac Input, 0-180 Vac Output, thru 1 1/2 HP, Open Chassis

$200.00
$200.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$200.00 $138.00
Sale

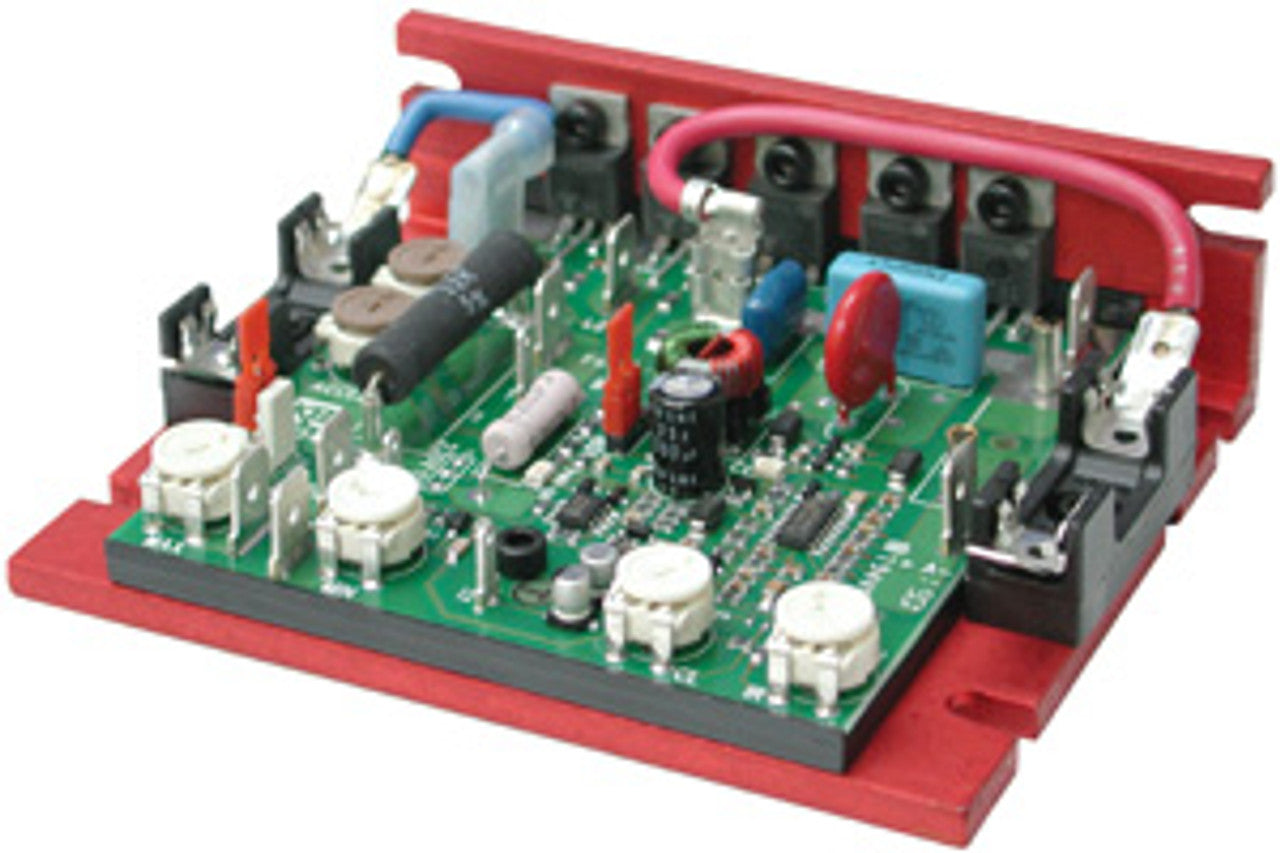

The KBMM-225 is an adjustable speed DC Drive. It will control motors between 1/50-1.5 HP (3.0 HP w/aux. Heat-sink) by inserting the proper Plug-in Horsepower Resistor. The KBMM-225 motor speed control is designed for 180 VDC PM and Shunt motors. Speed range is 50:1 with load regulation of 1%. Features include: AC Line fuse and Armature Fuse holder, Auto Inhibit, Voltage Following, MOV transient protection, 5K speed pot and trimpot adjustments for Min, Max, Accel, Decel, IR and CL. Options include Auxiliary heat sink, Barrier Terminal Board, RFI/EMI filters and Signal Isolation (model SI-6). This control is available worldwide from stocking KB distributors. UL, CSA, CE, C-tick. (CCC pending) Patented. Dimensions: 4.30" x 3.60" x 1.30".
