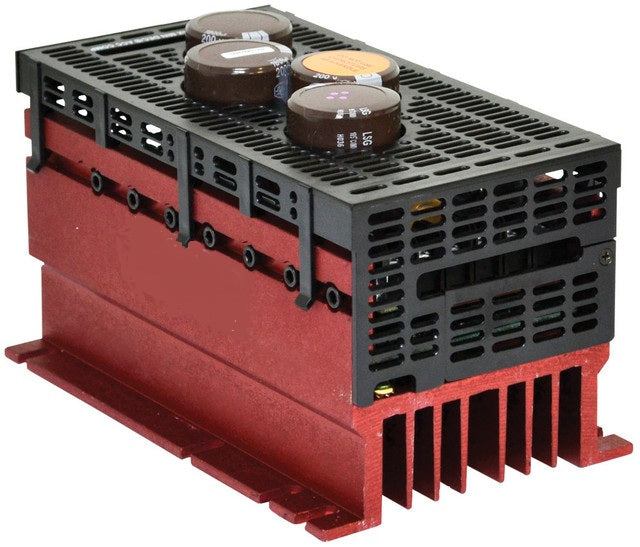

KB Electronics KBVF-42 W/SIVFR (9645), 1 HP, 380-480 Vac, 3-Phase(Input), 460 Vac. 3-Phase(Output), IP 20 Enclosure(Open Chassis), Variable Frequency Drives

KBVF-42 W/SIVFR (9645), 1 HP, 380-480 Vac, 3-Phase(Input), 460 Vac. 3-Phase(Output), IP 20 Enclosure(Open Chassis), Variable Frequency Drives

The KBVF-42, adjustable frequency AC Drive provides control of standard, 3.0 horsepower, 3 Phase AC and PSC induction motors used for Machine or Variable Torque (HVAC) applications. Standard features include; SIVFR Signal Isolator, Digital Programming, Adjustable RMS Current Limit, I2t prevents Motor Burnout, Slip Compensation with Auto-Tune & Boost provides excellent load regulation over a 30:1 speed range, Power Start? delivers over 200% motor starting torque to ensure startup of high frictional loads. Other standard features include Run/Fault Relay Output Contacts, Electronic Inrush Current Limit (EICL) that eliminates harmful AC Line inrush currents and a built-in dV/dT filter, that reduces harmful voltage spikes to the motor. Also provided are two diagnostic LEDs. The AC Drive is housed in a rugged U-frame chassis with an industry standard mounting footprint. A finger-safe cover provides protection against accidental contact with electrical components. Dimensions approx. 8.5" x 3.9" x 5.0" Agency approvals: UL, CE, CSA, C-Tick Optional accessories include: MSB Multi Speed Board, RFI Filters Class A & B, DLM Download Module, Drive Linktm Programming Kit, Modbus Communications Kit, Dynamic Brake Module
