Industrial Motors

KB Electronics KBWD-13 (8609) DC Drive Pulse Width Modulated (PWM), Chassis 0-130 VDC, 1/3 HP, Chassis

KB Electronics KBWD-13 (8609) DC Drive Pulse Width Modulated (PWM), Chassis 0-130 VDC, 1/3 HP, Chassis

$132.84
$132.84
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$132.84 $91.66
Sale

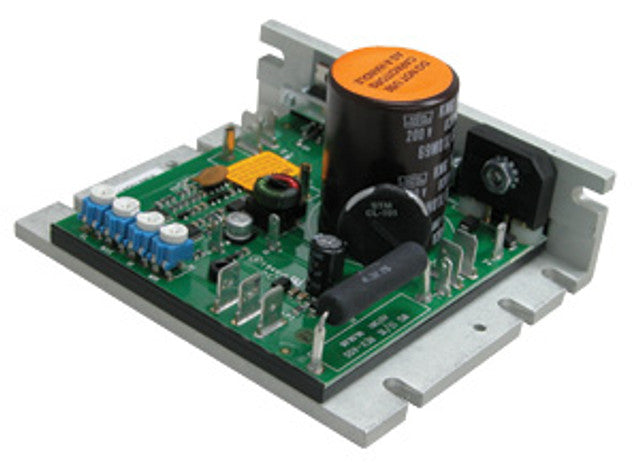

KBWD-13 (8609) DC Drive Pulse Width Modulated (PWM), Chassis 0-130 VDC, 1/3 HP, Chassis

The KBWD-13, 16 models provide a low cost alternative for pulse-width-modulated (PWM) control applications. Their compact size allows for direct replacement of other types. Standard features include instantaneous short circuit protection, under voltage protection and KB's Plug-in Horsepower Resistor?, which eliminates the need to calibrate IR Comp and CL. A potentiometer (5k), isolated analog signal (0-5VDC) or PWM microprocessor output can be used as an input signal.
Dimensions: 4.30" x 3.60" x 2.50"

View full details

Attachments
