Industrial Motors

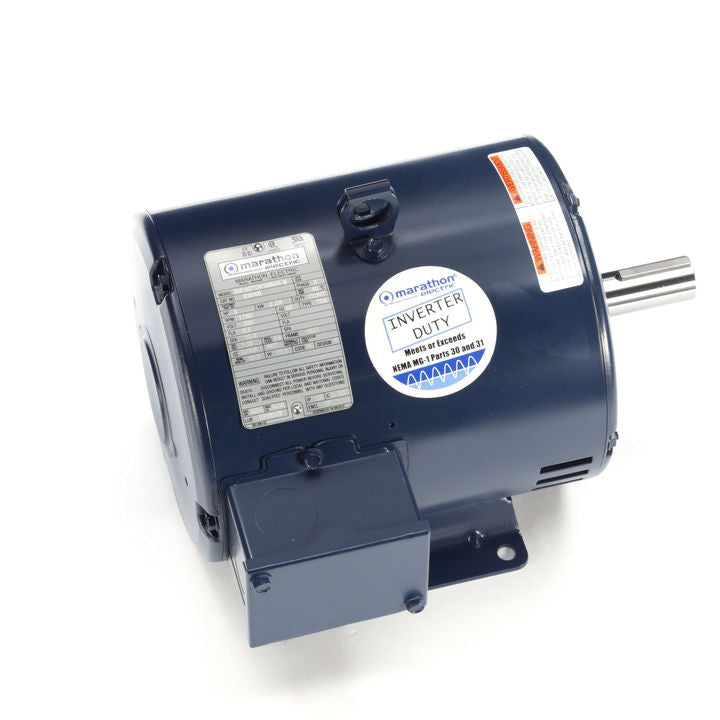

Marathon Electric L102, 3 Hp, 1800 Rpm, 182T FR, 200-208 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, Standard Effiencies

Marathon Electric L102, 3 Hp, 1800 Rpm, 182T FR, 200-208 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, Standard Effiencies

$1,002.00
$1,002.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,002.00 $951.90
Sale

**This motor has been replaced by Model# E904B**
L102, 3 Hp, 1800 Rpm, 182T FR, 200-208 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, Standard Effiencies

Engineering Data

Nameplate - 60 HZ

Hertz
60

HP
3

KW
2.24

RPM
1800

FL Eff
84

Volts
200-208

FL Amps
9.9-9.7

SF
1.15


Motor Wt.
50 LB

UL
Recognized Construction

CE
Y

CSA
Y


Phase
3

Insulation Class
B

Frame Size
182T

Enclosure
DP

Ambient
40

Mount Type
Rigid

Therm.Prot.
NOT

Orientation
HORIZONTAL

Nema Design
B

Assembly
F1 ONLY

Starting Method
ACROSS THE LINE

PE Bearing Type
BALL

KVA Code
K

OPE Bearing Type
BALL

IP Code
22

Drive End Bearing Size
6206

Opposite End Bearing Size
6203
