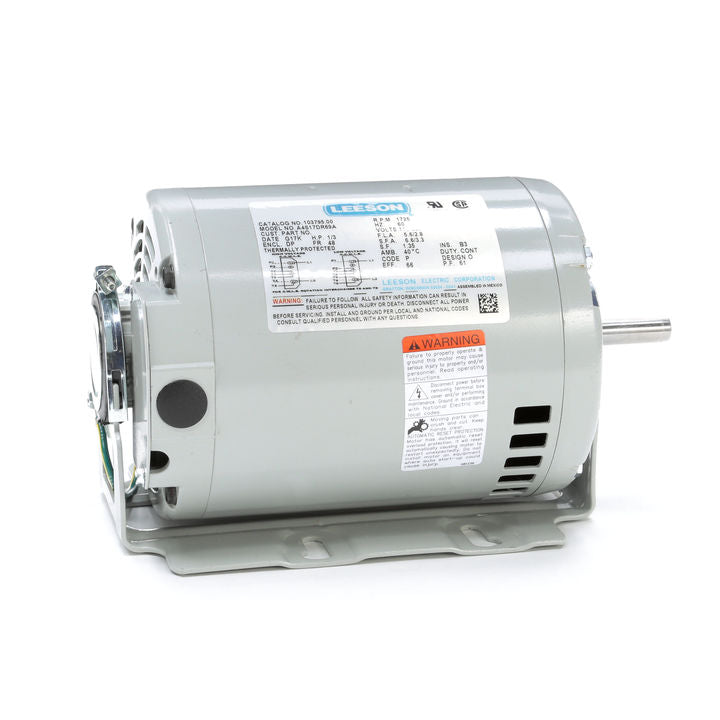

Leeson Electric 103795.00, 1/3 HP, 1800 RPM, 48 FR, DP, 115/230 Vac, 1 PH, Resilient Base, Fan & Blower

103795.00, 1/3 HP, 1800 RPM, 48 FR, DP, 115/230 Vac, 1 PH, Resilient Base, Fan & Blower.

Engineering Data

Volts 115 Volts 230 Volts
F.L. Amps 5.6 F.L. Amps 2.8 F.L. Amps
S. F Amps 6.6 S. F Amps 3.3 S. F Amps

RPM 1800 Hertz 60
HP 1/3 Duty CONTINUOUS TYPE SD
KW 0.25
Frame 48 Serv. Factor 1.35
Phase 1
Max Amb 40 Design O Code P
Insul Class B Protection AUTOMATIC Therm.Prot. MEJ56RX
Eff 100% 66 Eff 75% PF 61
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type Inverter Type Speed Range NONE

Motor Wt. 16 LB Enclosure DP Lubrication VERIFY
Nameplate 92005-198 Mounting RESILIENT BASE Rotation SELECTIVE CCW
Assembly Shaft Dia. Ext. Diag. A-005212-15
Cust Part No Outline A-SS404043-575 Ext. Diag2
Packaging F Winding SE484302
Carton Label GROUP: 3
Iris Paint GRAY - LIGHT Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C

Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor

Load Curve Data @60 Hz, 230 Volts, 1/3 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 2.24 0.112 1800 0.0 0.0 0.0 0.0 -
0.25 2.27 0.171 1782 4.0 0.0 0.0 0.0 -
0.5 2.37 0.238 1769 8.0 0.0 0.0 0.0 -
0.75 2.54 0.313 1755 12.0 0.0 0.0 0.0 -
1.0 2.79 0.397 1737 16.2 66.0 61.0 40.0 -
1.25 3.13 0.491 1716 20.4 0.0 0.0 0.0 -
1.35 3.29 0.534 1705 22.2 0.0 0.0 0.0 -
1.5 3.59 0.605 1686 25.0 0.0 0.0 0.0 -
1.75 4.25 0.751 1646 29.8 0.0 0.0 0.0 -
