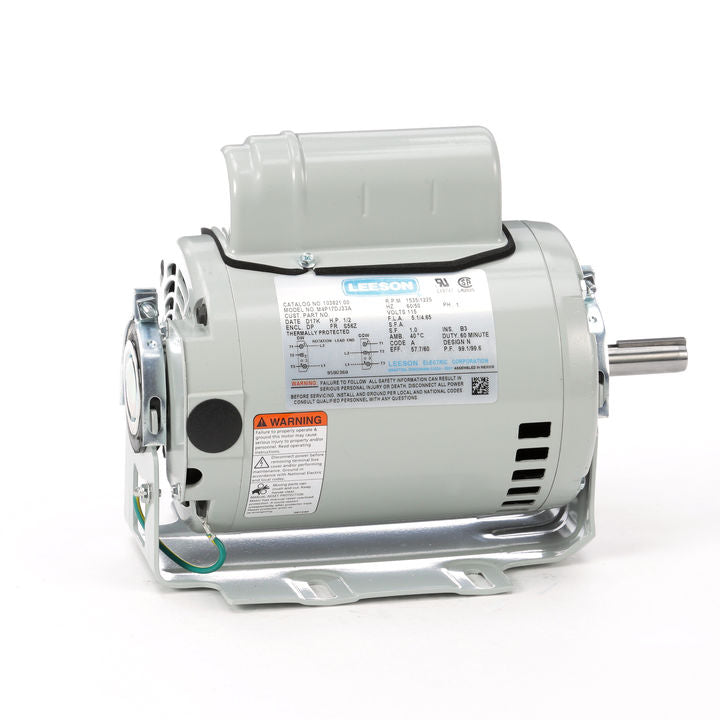

Leeson Electric 103821.00, 1/2 HP, 1625 RPM, S56Z FR, DP, 115 Vac, 1 PH, Resilient Base, Instant Reversing

103821.00, 1/2 HP, 1625 RPM, S56Z FR, DP, 115 Vac, 1 PH, Resilient Base, Instant Reversing

Engineering Data

Volts 115 Volts Volts 115
FL Amps 5.1 FL Amps FL Amps 4.65
SF Amps SF Amps SF Amps

RPM 1535 Hertz 60/50
HP 1/2 Duty 60 MINUTE Type PD
KW .37 SF 1.0 Phase 1
Frame S56Z Design N KVA Code A
Ambient 40 Protection MANUAL Therm.Prot. CEJ63CB
Insulation Class B Eff(75%) PF 99.1
Eff(100%) 57.7 CSA Y Bearing OPE 6203
UL Y-(LEESON UL REC) CE N Bearing PE 6203
CC Number EXEMPT Inverter Type Speed Range NONE
LOad Type

Motor Wt. 26.2 LB Enclosure DP Lubrication POLYREX EM
Nameplate 92005-77 Mounting RESILIENT BASE Rotation SELECTIVE CCW
Shaft Diam. Cust Part No. Packaging F
Winding PE484452 Carton Label
Group 1 Iris
Paint GRAY - LIGHT Hazardous Location NONE Test Card 01
