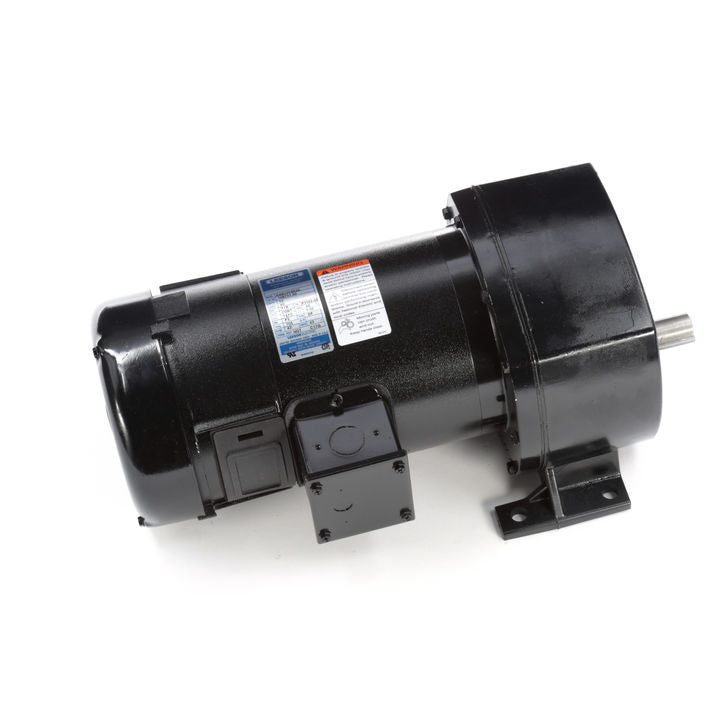

Leeson Electric 108731.00, 1/2 HP, 42 RPM, 42:1, 705 Lb-in, 12 Vdc, TEFC, P1100, Rigid Base, Parallel Shaft DC Gearmotors

Leeson Electric 108731.00, 1/2 HP, 42 RPM, 42:1, 705 Lb-in, 12 Vdc, TEFC, P1100, Rigid Base, Parallel Shaft DC Gearmotors

$1,404.00
$1,404.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

108731.00, 1/2 HP, 42 RPM, 42:1, 705 Lb-in, 12 Vdc, TEFC, P1100, Rigid Base, Parallel Shaft DC Gearmotors

Engineering Data
RPM 42

Volts 12

HP/KW 1/2

FL Amps 40

FL Amps

Frame 48Y

SF Amps

SF Amps

Max Amb 40

Insulation Class F3

Duty CONT

Type DF

Service Factory 1.0

PF

Eff(100%) 61.3

Eff(75%)

Enclosure TEFC

Protection NOT

Therm. Prot.


Bearing OPE
6203

Design

Code
Bearing PE 6203
UL Y
CSA Y
CE N
Lubrication
POLYREX EM
Series P1100
Overhung Load 650
Shaft Type PARALLEL
Motor Wt. 43 LB

Mounting
SPECIAL

Rotation
RECONN

Winding
D562112

Shaft Diag.
3/4

Carton Label
Leeson Gearmotor

Group
1 A

Paint
M1305027.01
