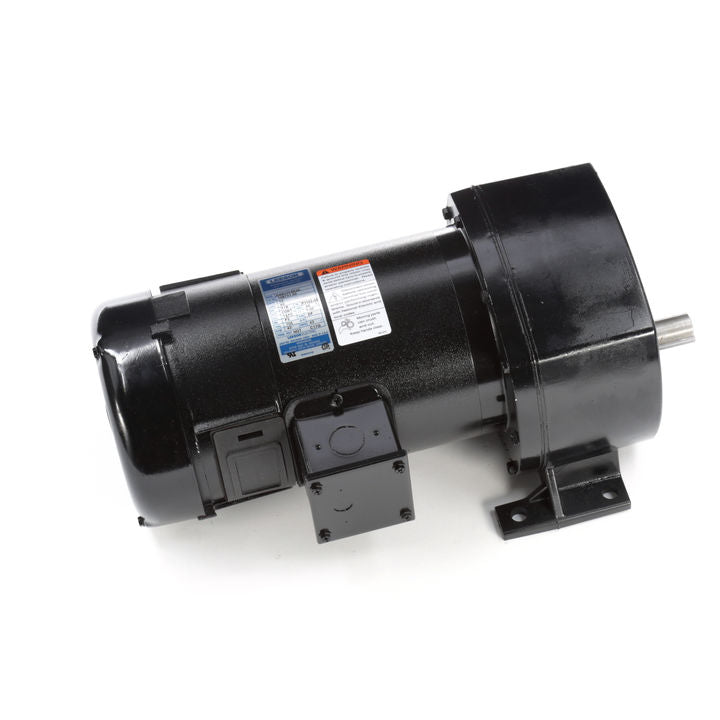

Leeson Electric 108732.00, 1/2 HP, 92 RPM, 48 FR, 12 Vdc, TEFC, Rigid Base, Gearmotors

Leeson Electric 108732.00, 1/2 HP, 92 RPM, 48 FR, 12 Vdc, TEFC, Rigid Base, Gearmotors

$1,621.00
$1,621.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

108732.00, 1/2 HP, 92 RPM, 48 FR, 12 Vdc, TEFC, Rigid Base, Gearmotors

Engineering Data

Output HP:0.50 Hp
Output KW:0.37 kW
Voltage:12 V
Current:40.0 A
Speed:92 rpm
Service Factor:1
Efficiency:61.3 %
Duty:Continuous
Insulation Class:F
Frame:48Y
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:N
Technical Specifications
Rotation:Reversible
Mounting:Special
Shaft Type:Parallel
Overall Length:15.31 in
Frame Length:4.97 in
Shaft Diameter:0.750 in
Shaft Extension:1.5 in
