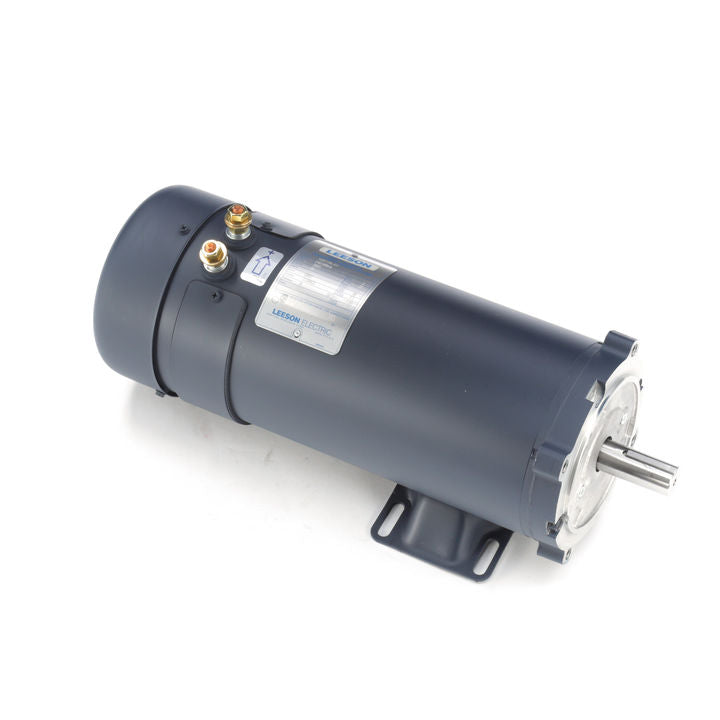

Leeson Electric 109106.00, 2 HP, 1800 RPM, S56CZ FR, TEFC, 24 Vdc, C-Face W/Removable Base, Low Voltage DC Motor

Leeson Electric 109106.00, 2 HP, 1800 RPM, S56CZ FR, TEFC, 24 Vdc, C-Face W/Removable Base, Low Voltage DC Motor

$2,477.00
$2,477.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$2,477.00 $1,337.58
Sale

109106.00, 2 HP, 1800 RPM, S56CZ FR, TEFC, 24 Vdc, C-Face W/Removable Base, Low Voltage DC Motor

Engineering Data

RPM 1800 HP 2 Service Factory 1.0
KW Form Factor 1.00 Amps 70
KW2 Form Factor 2 FLA2
Volts 24 Frame 56C

Max Amb 40 Duty CONT Type DF
Insulation Class F Enclosure TEFC Bearing OPE 6203
Protection NOT Protector Bearing PE 6205
EFF 85.8% Torque 70 LB-IN
UL Y CSA Y CE N
Shipping Weight 45 LB Lubrication POLYREX EM Carton Label Leeson Gen Purpose

Mounting C-Face Rigid Rotation RECONN Winding D63426
Group 1 A Shaft Diag. 7/8 IN Packaging PG659401.04Z
Sub Group A Paint 305000.01
Test Card 01 Cust Part No.
