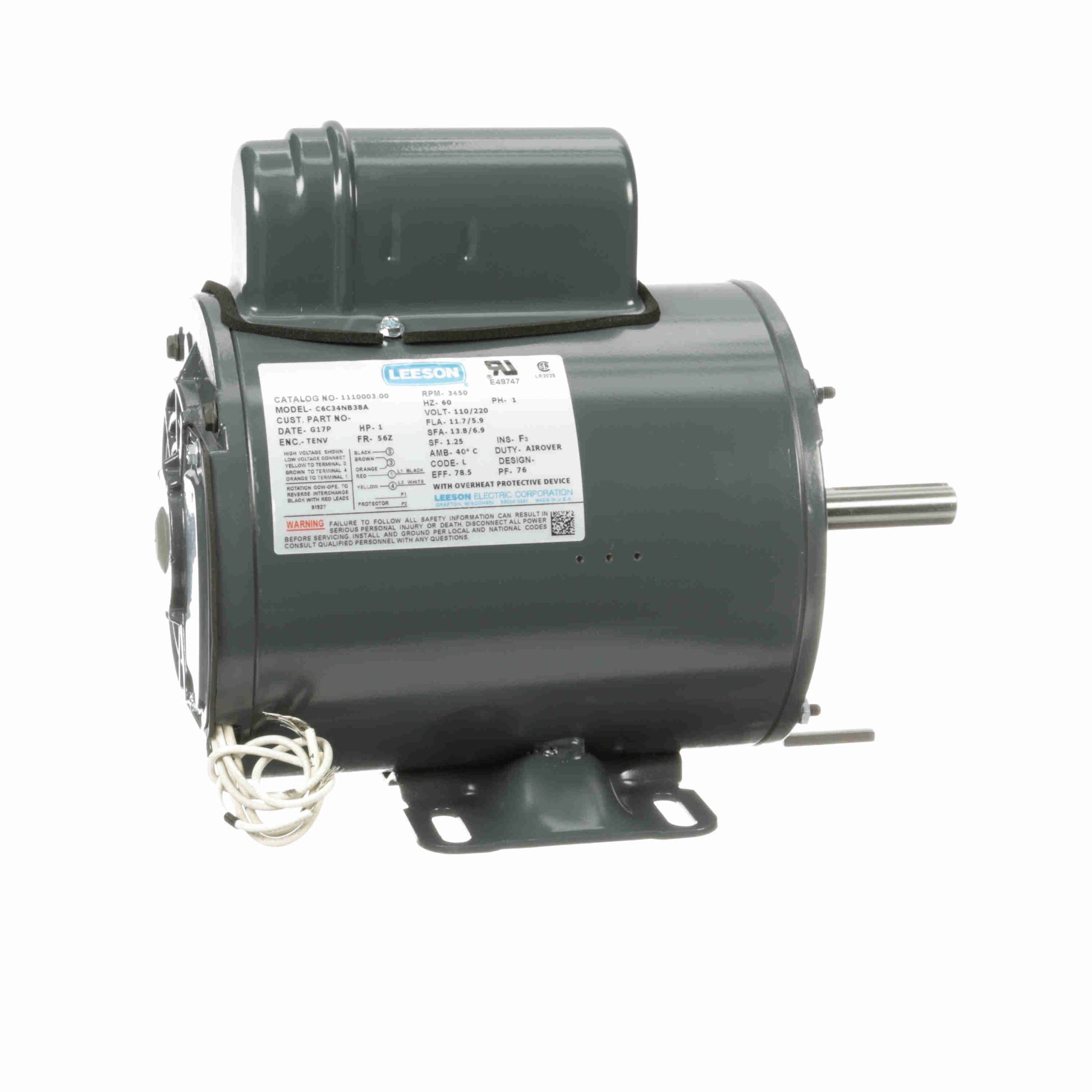

Leeson Electric 1110003.00, 1 HP, 3600 RPM, 56HZ FR, 110/220 Vac, 1 PH, TEAO, Rigid Base, Grain Stirring Motor.

1110003.00, 1 HP, 3600 RPM, 56Z FR, 110/220 Vac, 1 PH, TEAO, Rigid Base, Grain Stirring Motor.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:110/220 V
Current:11.7/5.9 A
Speed:3450 rpm
Service Factor:1.25
Phase:1
Efficiency:78.5 %
Power Factor:76
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:L
Frame:56Z
Enclosure:Totally Enclosed Air Over
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:N
IP Code:43
Technical Specifications
Electrical Type:Capacitor Start Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:11.06 in
Frame Length:7.16 in
Shaft Diameter:0.625 in
Shaft Extension:2.44 in
Assembly/Box Mounting:F1 Only
