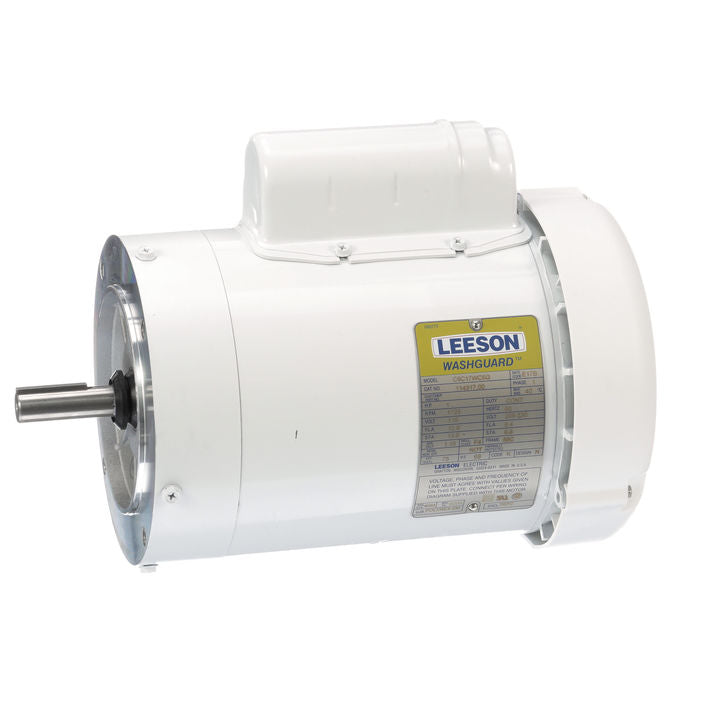

Leeson Electric 114319.00, 1 1/2 HP, 1800 RPM, 56C FR, TEFC, 115/208-230 Vac, 1 PH, C-Face Less Base, Washguard

114319.00, 1 1/2 HP, 1800 RPM, 56C FR, TEFC, 115/208-230 Vac, 1 PH, C-Face Less Base, Washguard

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:19.0/9.5 A
Speed:1725 rpm
Service Factor:1.15
Phase:1
Efficiency:71 %
Power Factor:72
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:J
Frame:56C
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:N
IP Code:55
Technical Specifications
Electrical Type:Capacitor Start Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 OhmsMounting:RoundMotor Orientation:HorizontalDrive End Bearing:BallOpp Drive End Bearing:BallFrame Material:Rolled SteelShaft Type:NEMA 56
Overall Length:13.37 in
Frame Length:7.50 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 Only
