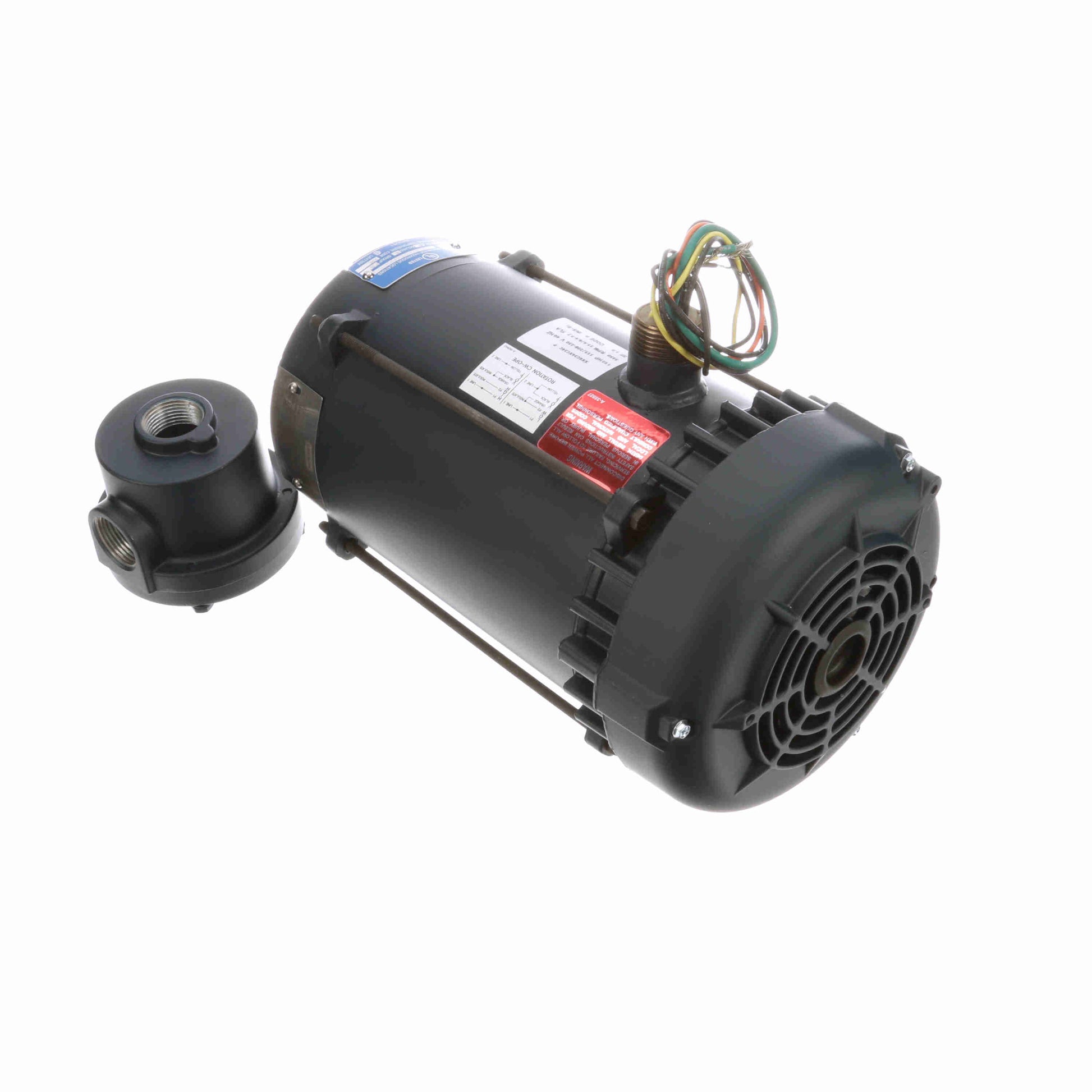

Leeson Electric 116183.00, 1 1/2 HP, 3600 RPM, 56J FR, 115/208-230 Vac, 3 PH, EPFC, Explosion Proof.

116183.00, 1 1/2 HP, 3600 RPM, 56J FR, 115/208-230 Vac, 3 PH, EPFC, Explosion Proof.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:15.4/8.4-7.7 A
Speed:3450 rpm
Service Factor:1
Phase:1
Efficiency:77 %
Power Factor:81.5
Duty:Continuous
Insulation Class:B
Design Code:L
KVA Code:H
Frame:56J
Enclosure:Explosion Proof Fan cooled
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:UL Listed And CSA Certified
CSA:Y
CE:N
IP Code:54
Hazardous Location:EXP PROOF CL I GR C&D CL II GR F&G T3C
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:2
Rotation:Fixed Clockwise
Resistance Main:0 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:J
Overall Length:14.95 in
Frame Length:7.31 in
Shaft Diameter:0.625 in
Shaft Extension:2.44 in
Assembly/Box Mounting:F1 ONLY
