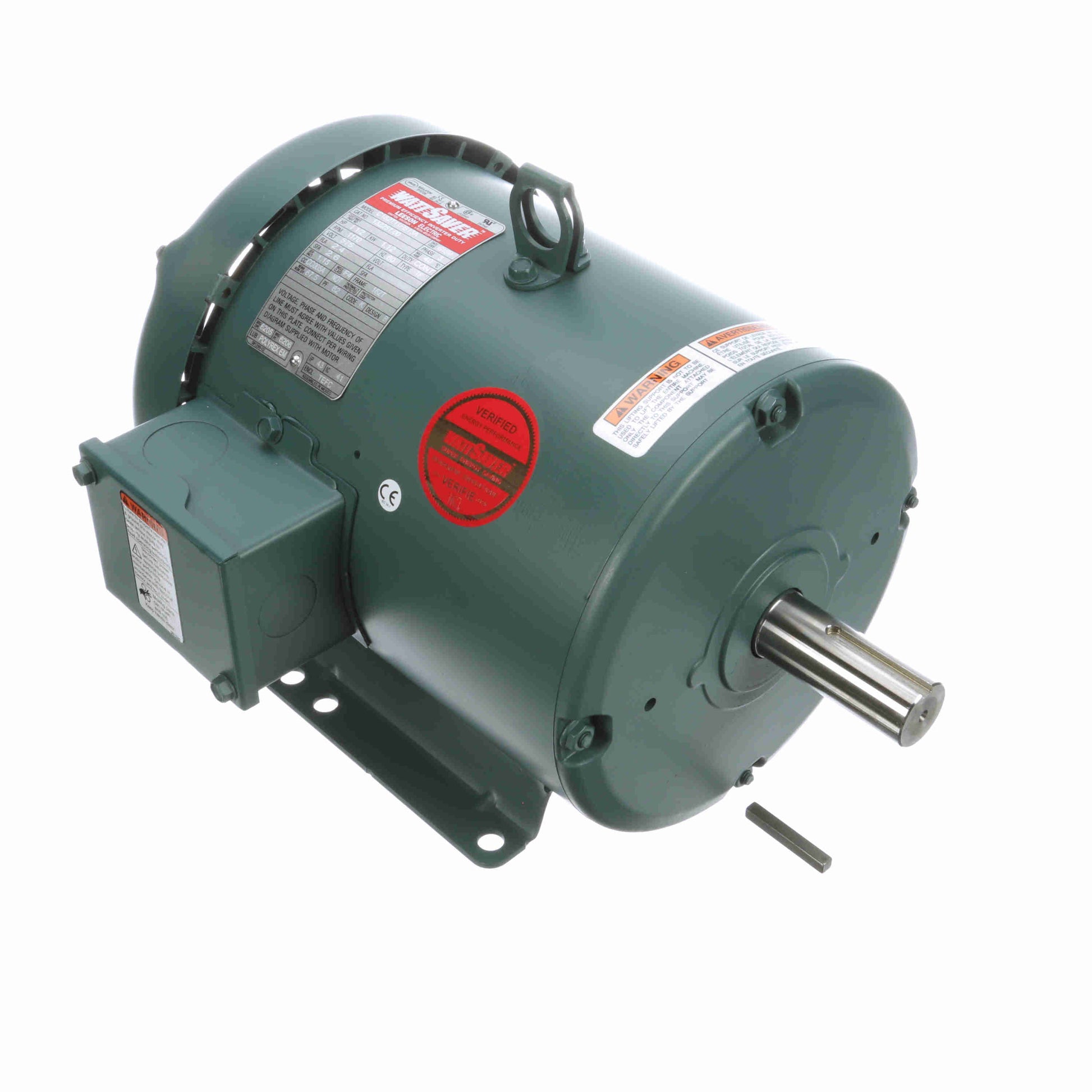

Leeson Electric 117772.00, 1/2 HP, 1800 RPM, 56 FR, 208-230/460 Vac, TEFC, 3 PH, Rigid Base, Agricultural Motor.

117772.00, 1/2 HP, 1800 RPM, 56 FR, 208-230/460 Vac, TEFC, 3 PH, Rigid Base, Agricultural Motor.

Engineering Data

Output HP:0.50 Hp
Output KW:0.37 kW
Frequency:60/50 Hz
Voltage:208-230/460 V
Current:1.8-1.6/0.80 A
Speed:1725 rpm
Service Factor:1.25
Phase:3
Efficiency:80 %
Power Factor:73
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:L
Frame:56
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:32.97 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:10.98 in
Frame Length:5.50 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 ONLY
