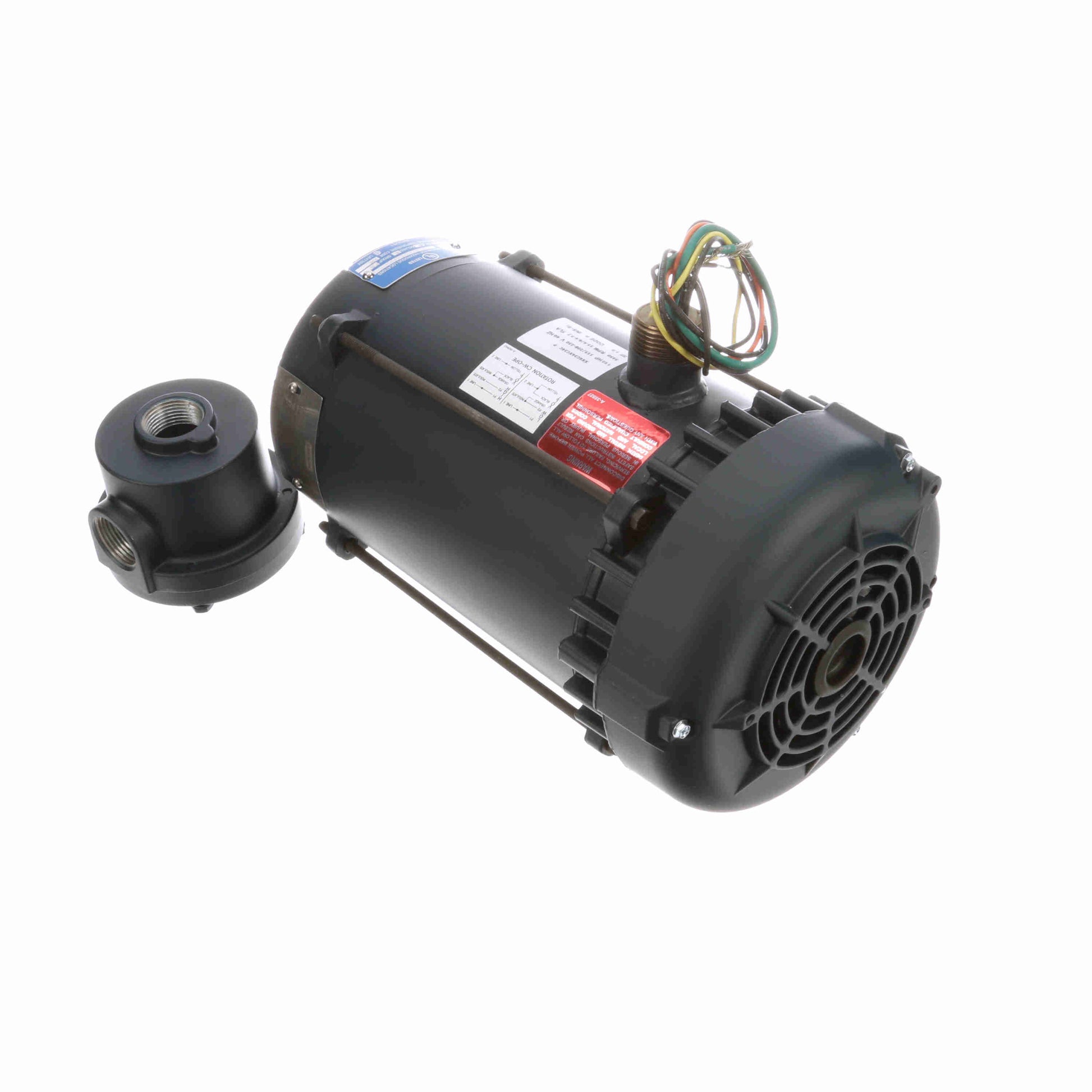

Leeson Electric 117859.00, 1/3 HP, 1800 RPM, 56C FR, 208-230/460 Vac, 3 PH, EPNV, Rigid Base, Explosion Proof

117859.00, 1/3 HP, 1800 RPM, 56C FR, 208-230/460 Vac, 3 PH, EPNV, Rigid Base, Explosion Proof

Engineering Data

Output HP:0.33 Hp
Output KW:0.25 kW
Frequency:60/50 Hz
Voltage:208-230/460 V
Current:1.2-1.2/0.60 A
Speed:1725 rpm
Service Factor:1
Phase:3
Efficiency:74.5 %
Power Factor:71
Duty:Continuous
Insulation Class:B
Design Code:B
KVA Code:K
Frame:56C
Enclosure:Explosion Proof Non Ventilated
Thermal Protection:Thermostats (N/C)
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:UL Listed And CSA Certified
CSA:Y
CE:NIP Code:54
Hazardous Location:EXP PROOF CL I GR C&D CL II GR F&G T3C
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:63.7 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:11.97 in
Frame Length:6.31 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 ONLY
