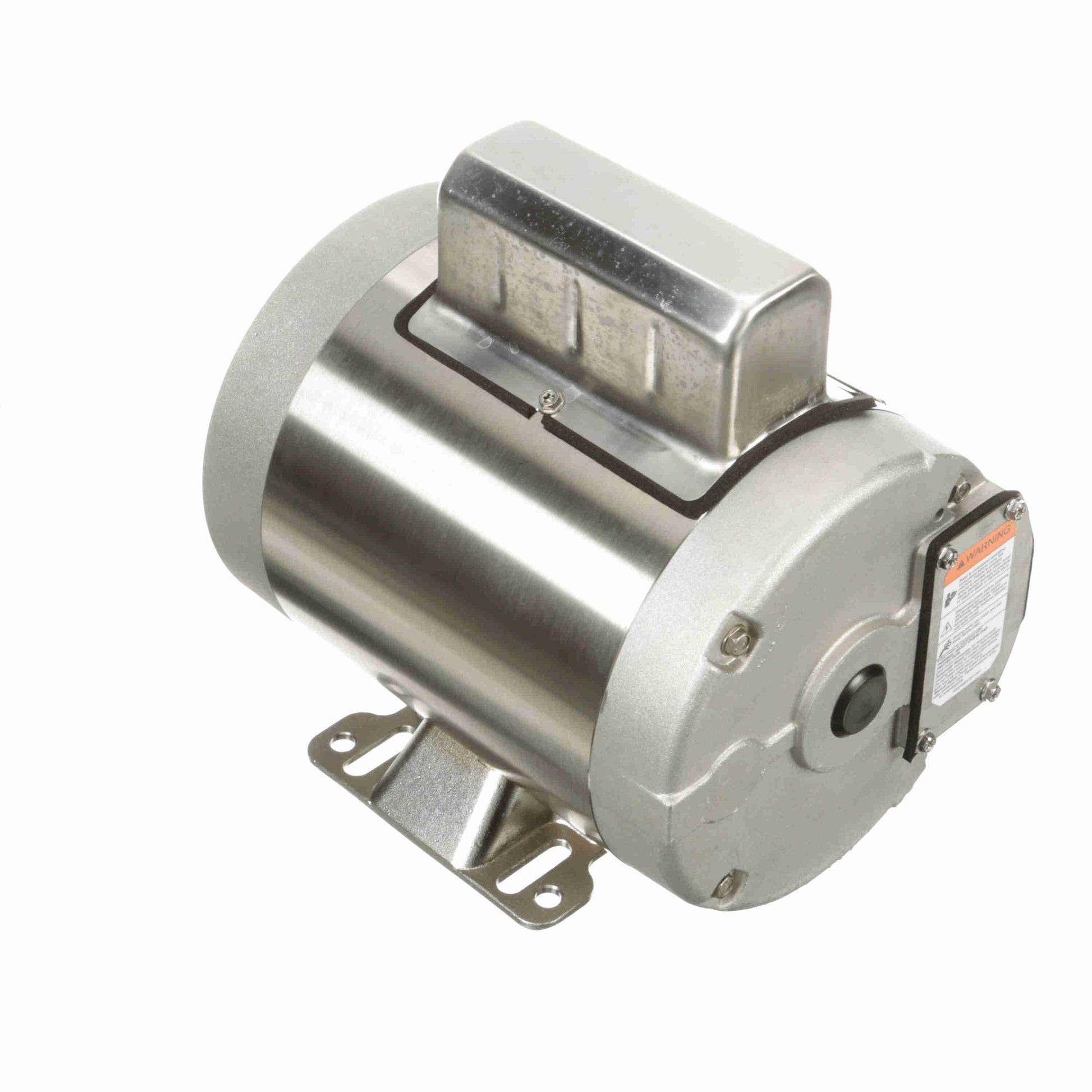

Leeson Electric 119217.00, 1 Hp, 1800 Rpm, 56C FR, TEFC, 115/208-230 Vac, 1 PH, Rigid Base, Washdown Motor.

119217.00, 1 Hp, 1800 Rpm, 56C FR, TEFC, 115/208-230 Vac, 1 PH, Rigid Base, Washdown Motor.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:12.8/6.4 A
Speed:1725 rpm
Service Factor:1
Phase:1
Efficiency:75 %
Power Factor:68
Duty:10 Minute
Insulation Class:B
Design Code:N
KVA Code:K
Frame:56C
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:N
IP Code:43
Technical Specifications
Electrical Type:Capacitor Start Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:1.9 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Stainless Steel
Shaft Type:NEMA 56
Overall Length:10.90 in
Frame Length:6.00 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 Only
