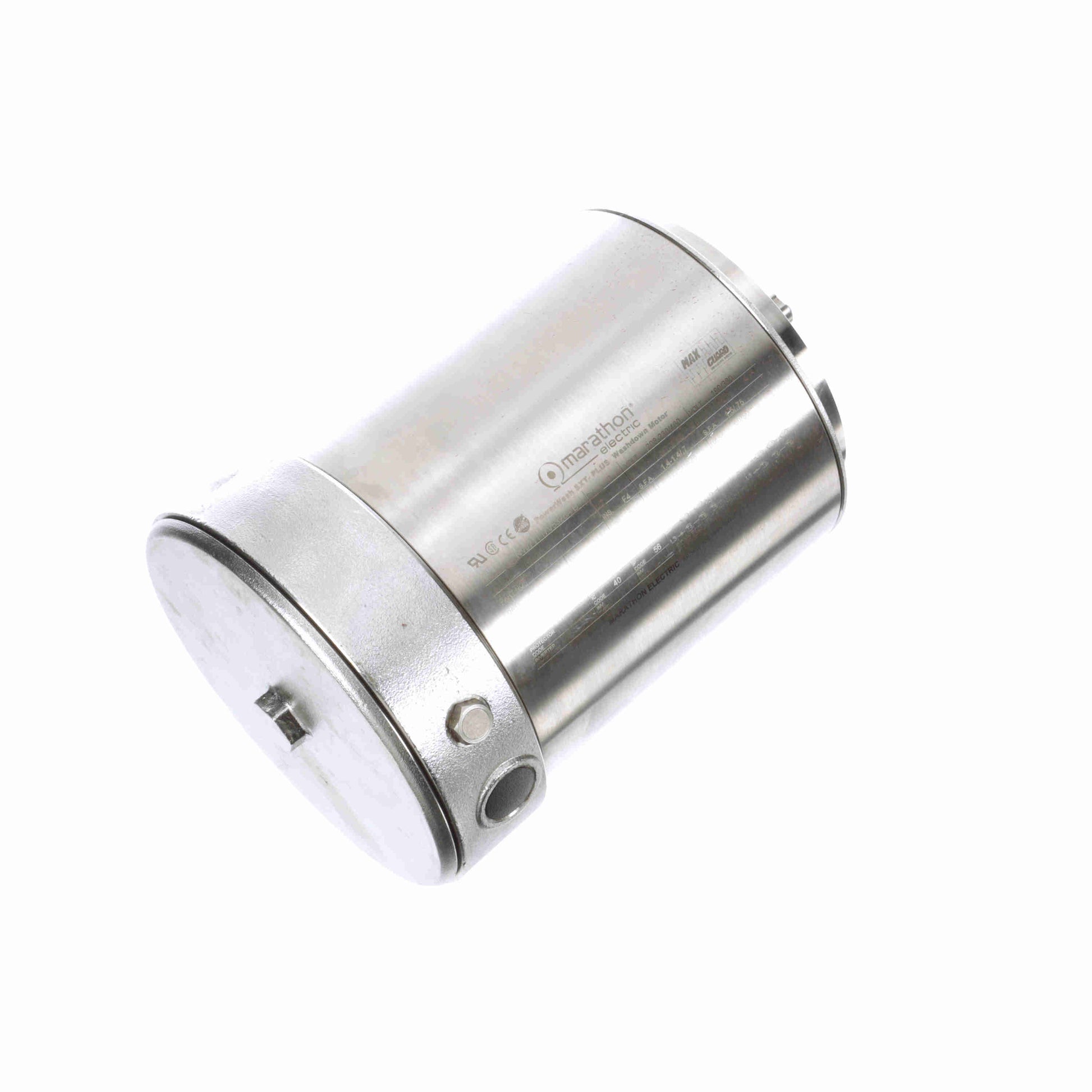

Leeson Electric 119266.00, 1/2 HP, 1200 RPM, 56HC FR, 208-230/460 Vac, 3 PH, TENV, Rigid Base, Explosion Proof.

119266.00, 1/2 HP, 1200 RPM, 56HC FR, 208-230/460 Vac, 3 PH, TENV, Rigid Base, Explosion Proof.

Engineering Data

Output HP:0.50 Hp
Output KW:0.37 kW
Frequency:60/50 Hz
Voltage:208-230/460 V
Current:2.4-2.3/1.2 A
Speed:1140 rpm
Service Factor:1.15
Phase:3
Efficiency:77 %
Power Factor:54
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:K
Frame:56HC
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:Y
IP Code:69
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:6
Rotation:Reversible
Resistance Main:29.36 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:NEMA 56
Overall Length:11.71 in
Frame Length:6.50 in
Shaft Diameter:0.625 in
Shaft Extension:2.06 in
Assembly/Box Mounting:F1/F2 CAPABLE
